| Product Name: | High Strength White Polyester Spiral Dryer Filter Screen Mesh Belt For Mechanical Dewatering | Color: | White Blue Red |
|---|---|---|---|
| Width: | 3 Meters | Length: | 30 Meters |
| Material: | 100% Polyester | Usage: | Mechanical Dewatering |
| Type: | Spiral Dryer Filter Belt | MOQ: | 1 Square Meter |
| High Light: | spiral monofilament polyester mesh belt,mechanical dewatering polyester mesh belt,mechanical dewatering polyester spiral belt |
||

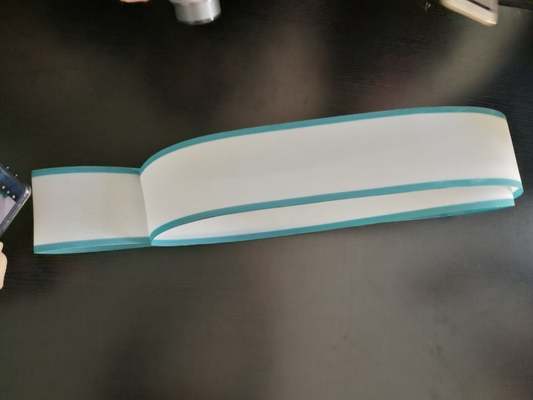

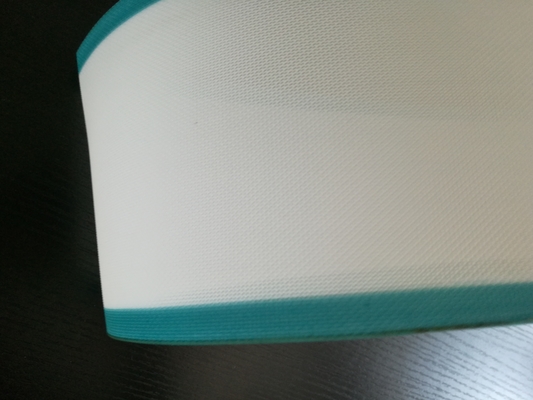

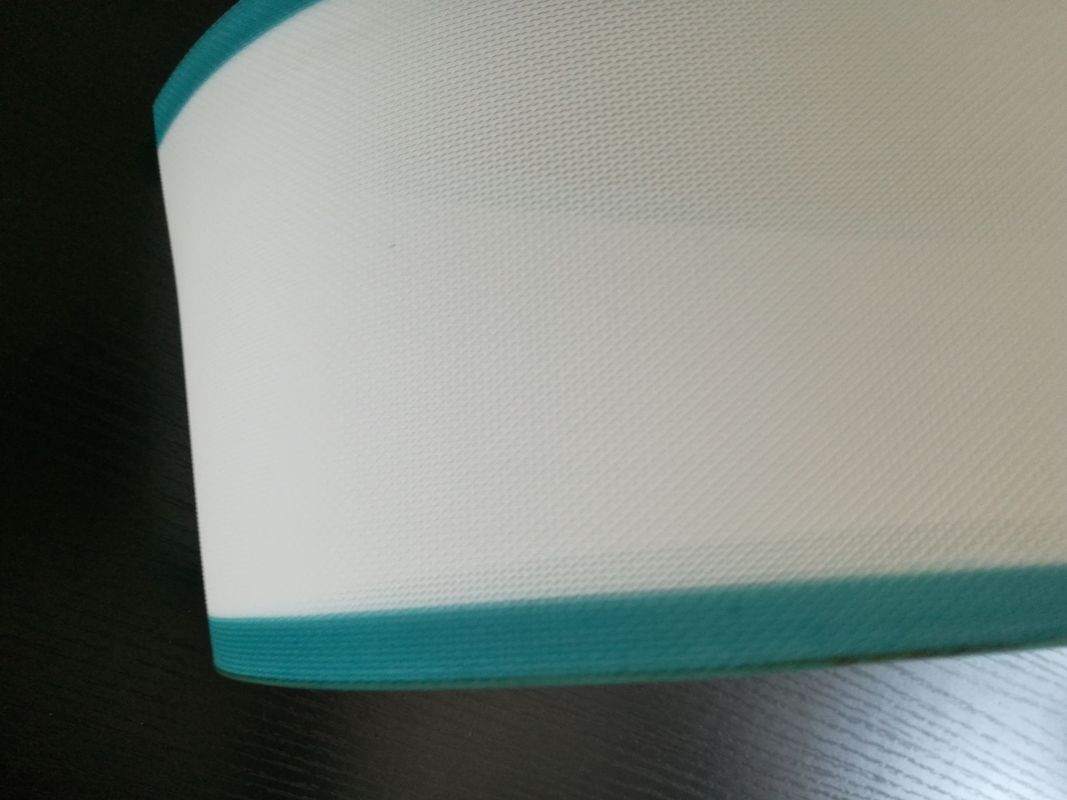

High Strength White Polyester Spiral Dryer Filter Screen Mesh Belt For Mechanical Dewatering
Introduction Of The Spiral Dryer Wire Mesh Belt
Spiral Belt is a heat-set mesh screen made of 100% polyester monofilament. The mesh belts are helically connected by using cross wires. Spirals contain fill lines to secure open areas. Robust polyester fibers provide excellent stability, excellent chemical, thermal and high permeability for easy cleaning. Polyester fabrics can be used in hot, humid and humid conditions, usually in the presence of steam, and their working temperature can reach +150°C to -75°C in dry conditions. 70°C+ in wet conditions. Spiral conveyor belts consist of monofilament mesh fabrics and connecting joints. PU and PVC sandwich belts are also available for various applications.
Specifications Of The Spiral Dryer Wire Mesh Belt
| Loop Weave Model | Wire / Thread Diameter (mm) | Thickness(mm) | Weight(kg/m2) | Air Permeability | |
| Warp | Weft | (m3/m2h) | |||
| Large Loop 4070B | 0.9 | 1.1 | 3 | 1.7 | 20500+-1500 |
| Large Loop 4070A | 0.9 | 1.1 | 3 | 1.9 | 5250+-500 |
| Medium Loop 3868B | 0.7 | 0.9 | 2.5 | 1.4 | 18500+-1500 |
| Medium Loop 3868A | 0.7 | 0.9 | 2.5 | 1.7 | 4750+-500 |
| Small Loop 3252B | 0.5 | 0.7 | 1.9 | 1.1 | 15000+-1500 |
| Small Loop 3252A | 0.5 | 0.7 | 1.9 | 1.4 | 4000+-500 |
Application Of The Spiral Dryer Wire Mesh Belt
Spiral belts are primarily used in filtration or separation applications in municipal projects, such as wastewater treatment, and in various sludge belt press liquid filtration applications. Our products are suitable for most mechanical dewatering cases of various materials.
- dewatering of inert sludge from quarries or mines;
- dewatering of biological or chemical sludge from municipal sewage plants;
- Pressing grapes, fruits, etc.;
- Fruit and vegetable cleaning;
- Textile drying belts;
- Manufacture and processing of paper, particleboard, medium density fiberboard (MDF), oriented strand board (OSB), cardboard and wood veneer processes and ceiling tiles.
Advantages Of The Spiral Dryer Wire Mesh Belt
Available in PA, PET, PP, PVDF or upon request.
Easy to clean.
Custom designs, shapes and materials are available.
The maximum temperature is 130 ℃, acid and alkali resistance.
Sealed steel ring or plastic ring, suitable for all kinds of equipment.
