Product Details:
Payment & Shipping Terms:
|
| Material: | 100%polyester | Color: | White Blue |
|---|---|---|---|
| Type: | 16903 22903 | Usage: | Press Filter, Juice, Sludge Dewatering Food Industry |
| Width: | 0.2-3.2meters | Length: | 10-100meters |
| Feature: | Easy Clean | Advantage: | Long Service Time |
| High Light: | dryer screen polyester sludge dewatering belt,juice industry polyester sludge dewatering belt,food industry dryer mesh belt |
||

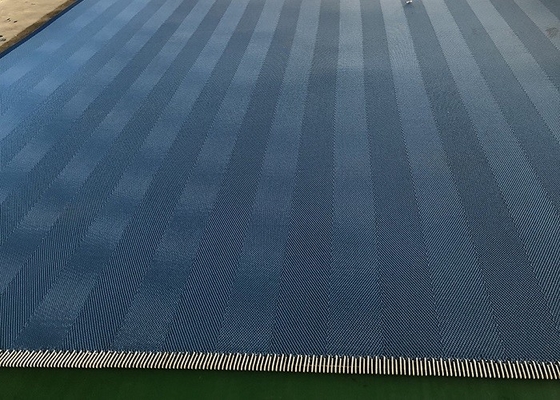

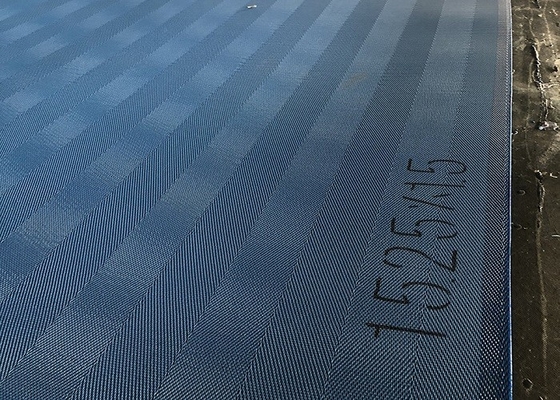

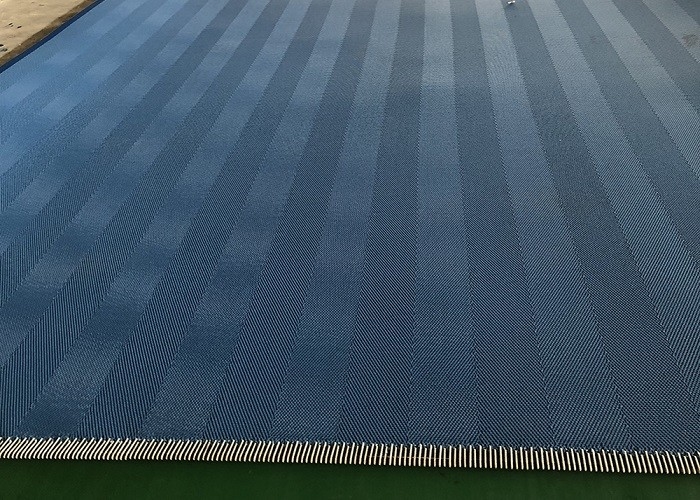

Polyester Press Filter Band Filter Screen Belt Sludge Dewatering Dryer Screen Belt For Juice Sugar Food Industry
Production Introduction:
Polyester Sludge Dehydration Fabrics is also called press-filter Fabrics which is mainly used for sludge dehydration, paper pulp and juice squeeze, mine smelting, mine tailing disposal and other pressure filtration industries.
polyester filter press belt specially be used to wastewater treatment plants as sludge dewatering mesh belt. It enjoys the features of air and water permeation, while not allowing the sludge. Due to its unique structure, the sludge will get easily off the belt after filtration. Easy cleaning and long service life.
Sludge Dewatering Belt, is designed for solid liquid separation, especially sludge dehydration in sewage treatment industry. Made of high quality polyester, our range of belt is heat-set at exacting temperature and tensioned to achieve much better operational stability. It is suitable for press belt filter and various vacuum belt filter
Applications:
Municipal and industrial wastewater treatment plants
Paper mills
Steel and rolling mills
Water treatment systems
Sand and gravel etc
Advantage:
1) According to finland srandard with first-class monofilament.
2) Non-revealed sludge
3) Stable property
4) The sludge can be get off easily
|
Type
|
Wire Diameter(mm) | Density/cm |
Strength(N/cm) Tensile strength |
Weight kg/m2 |
Thickness mm |
Air Permeability m3/m2h |
|||
| Warp | Weft |
Warp |
Weft |
Surface | Joint | ||||
| RK27708 | 0.50 | 0.70 | 28 | 8.5 | 1600 | 900 | 1.53 | 2.0 | 4896 |
| RK26908 | 0.50 | 0.90 | 26.2 | 6.2 | 1600 | 900 | 1.49 | 2.15 | 6080 |
| RK24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 |
| RK24808 | 0.50 | 0.80 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 6880 |
| RK16903 | 0.70 | 0.90 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 |
| RK16903 | 0.70 | 0.90 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 5550/3980 |
| RK15905 | 0.90 | 0.90 | 15.3 | 5 | 1600 | 900 | 2.1 | 2.77 | 7840 |
| RK151105 | 0.90 | 1.10 | 15.3 | 6.3 | 1600 | 900 | 2.45 | 2.85 | 9280 |
| RK12904 | 0.90 | 0.90 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 9600 |
