Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyester Sludge Dewatering Belt | Key Words: | Polyester Press Filter Belt, Polyester Dryer Screen Mesh |
|---|---|---|---|
| Material: | 100% Polyester | Color: | White Blue |
| Name: | Polyester 16903 Press Filter Mesh Belt | Usage: | Juice, Coal Mine, Sludge Dewatering |
| Air Permeability: | 186-600CFM | Width: | 0.2-3.2m |
| Type: | 22903 16903 | Advantage: | Long Service Time, Easy Clean |
| High Light: | 0.2m width polyester sludge dewatering belt,paper mill polyester sludge dewatering belt,juice squeezing polyester spiral belt |
||

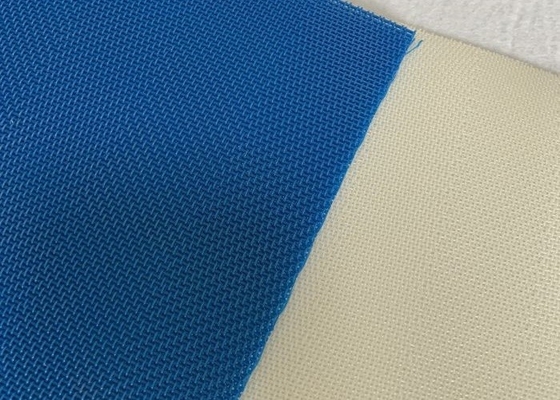

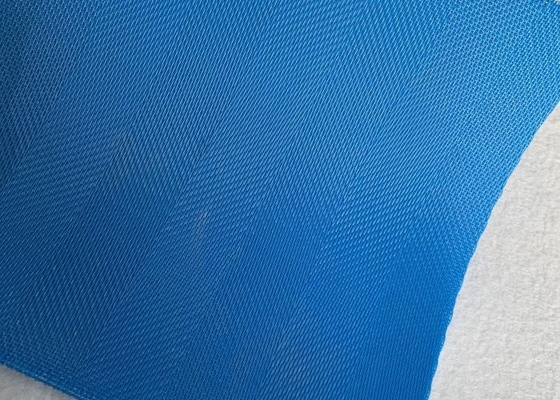

Polyester Press Filter Conveyor Belt for Sludge Dewatering Belt Paper Mill Juice Squeezing
Product Introduction:
Polyester sludge dewatering mesh belt have two type: one is the spiral dryer mesh belt, another is weaved by the different weaving way, because of its special structure, it have smaller air permeability. Both of this two types was mainly used for sludge dehydration, paper pulp and juice squeeze, mine smelting, mine tailing disposal and other pressure filtration industries.
Specifcation sheet:
|
Type
|
Wire Diameter(mm) |
Density/cm |
Strength(N/cm Tensile strength |
Weight kg/m2 |
Thickness mm |
Air Permeability m3/m2h |
CFM 127/pa |
|||
|
Warp |
Weft |
Warp |
Weft |
Surface |
Joint |
|||||
| RK31505 | 0.40 | 0.50 | 33 | 9 | 1600 | 900 | 0.80 | 1.30 | 2976 | 186 |
| RK26508 | 0.50 | 0.50 | 28 | 18.5 | 1600 | 900 | 1.20 | 1.5 | 2050 | 128 |
| RK2470 | 0.50 | 0.70 | 24 | 9 | 1600 | 650 | 1.23 | 1.90 | 7520 | 470 |
| RK22903 | 0.50 | 0.90 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.90 | 8480 | 530 |
| RK27708 | 0.50 | 0.70 | 28 | 8.5 | 1600 | 900 | 1.53 | 2.0 | 4896 | 306 |
| RK26908 | 0.50 | 0.90 | 26.2 | 6.2 | 1600 | 900 | 1.49 | 2.15 | 6080 | 380 |
| RK24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 | 460 |
| RK24808 | 0.50 | 0.80 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 6880 | 430 |
| RK16903 | 0.70 | 0.90 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 | 470 |
| RK16903 Blue | 0.70 | 0.90 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 5550/3980 | 347/248 |
| RK15905 | 0.90 | 0.90 | 15.3 | 5 | 1600 | 900 | 2.1 | 2.77 | 7840 | 490 |
| RK151105 | 0.90 | 1.10 | 15.3 | 6.3 | 1600 | 900 | 2.45 | 2.85 | 9280 | 580 |
| RK12904 | 0.90 | 0.90 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 9600 | 600 |
Applicant:
Mainly used in belt type filter press,
the rubber belt type vacuum filter,
horizontal vacuum belt filter.
Features of the belt:
It is made of monofilament and multifilament with special cross-section, which can intercept materials of 2-10 microns, and the material is easy to glass

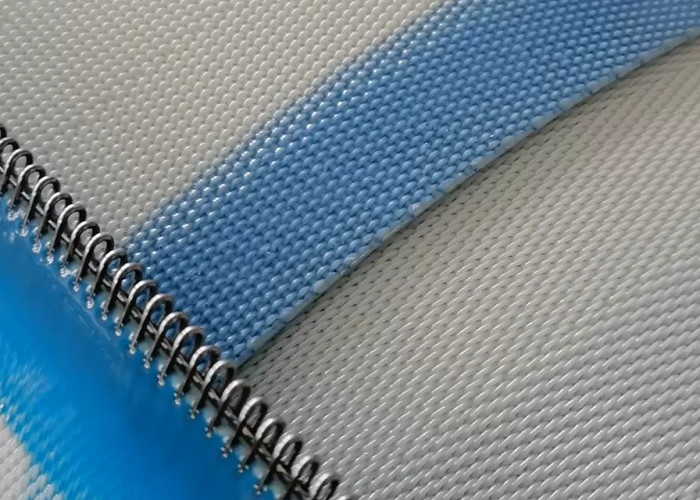

The high-strength joint process makes the product joint firmly, not easy to break the vacuum, and therefore has a long service
life.
We can add fillings according to customers' requirements to change the air permeability.
It has stable structure, also, good water and heat resistance (up to 180℃)
| Product name | Polyester sludge dewatering belt for paper making |
| Material | 100% polyester |
| size of the belt | Width not more than 3.6m, length can be customized |
| Color | white and Blue |
| Usage | paper making, press filter machine, suger mill |
