Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Polyester | Color: | White Blue |
|---|---|---|---|
| Name: | Polyester Sludge Dewatering Mesh Conveyor Belt | Usage: | Juice, Coal Mine, Sludge Dewatering |
| Air Permeability: | 186-600CFM | Width: | 0.2-3.2m |
| Length: | 1-100meters | Type: | 22903 16903 |
| Advantage: | Long Service Time, Easy Clean | ||
| High Light: | pharmaceutical filter polyester mesh conveyor belt,sewage watertreatment polyester mesh conveyor belt,pharmaceutical filter polyester sludge dewatering belt |
||

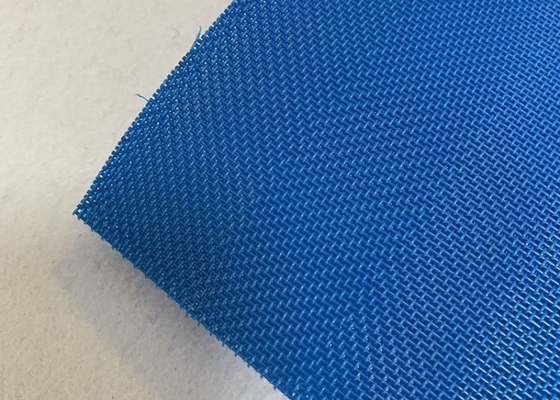

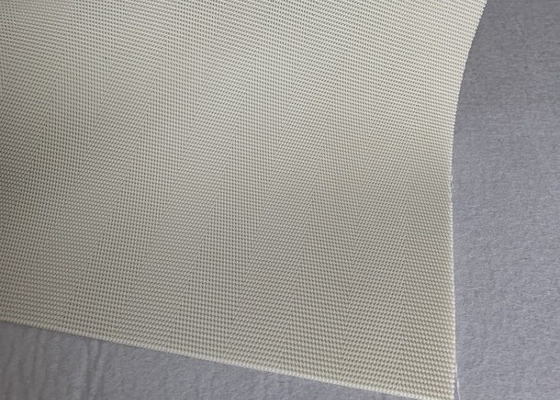

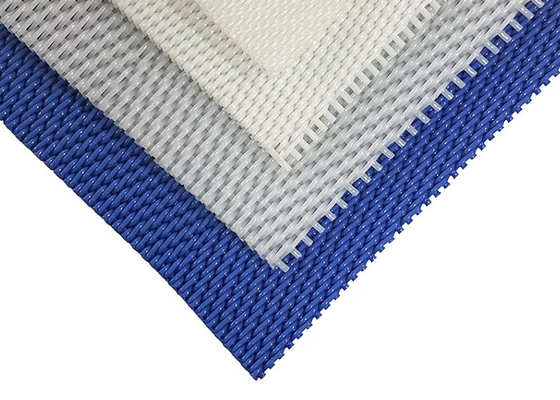

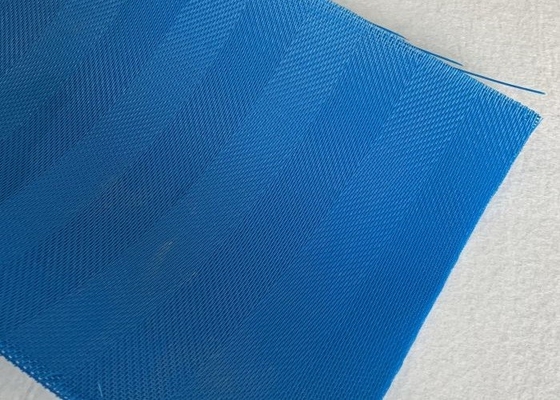

Polyester sludge dewatering mesh conveyor belt for pharmaceutical filter sewage water treatment polyester lifting belt
Product Introduction:
Sludge Dewatering belt is also called Press-filter fabrics which is mainly used for sludge dehydration, paper pulp and juice squeeze, mine smelting, mine tailing disposal and other pressure filtration industries.
The sludge dewatering belt have the characteristics of good water permeability, air permeability and non-revealed sludge,acid-resisting and alkali-resisting. Because of theirs designing structure, the sludge can be peel off easily from the filter cake, so the screen are easily cleaned and have a long working time. Mainly matching with belt type filter press, vacuum rubber belt filter and horizontal vacuum belt filter.
Specifcation sheet:
|
Type
|
Wire Diameter(mm) |
Density/cm |
Strength(N/cm) Tensile strength |
Weight kg/m2 |
Thickness mm |
Air Permeability m3/m2h |
CFM 127/pa |
|||
|
Warp |
Weft |
Warp |
Weft |
Surface |
Joint |
|||||
| RK31505 | 0.40 | 0.50 | 33 | 9 | 1600 | 900 | 0.80 | 1.30 | 2976 | 186 |
| RK26508 | 0.50 | 0.50 | 28 | 18.5 | 1600 | 900 | 1.20 | 1.5 | 2050 | 128 |
| RK2470 | 0.50 | 0.70 | 24 | 9 | 1600 | 650 | 1.23 | 1.90 | 7520 | 470 |
| RK22903 | 0.50 | 0.90 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.90 | 8480 | 530 |
| RK27708 | 0.50 | 0.70 | 28 | 8.5 | 1600 | 900 | 1.53 | 2.0 | 4896 | 306 |
| RK26908 | 0.50 | 0.90 | 26.2 | 6.2 | 1600 | 900 | 1.49 | 2.15 | 6080 | 380 |
| RK24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 | 460 |
| RK24808 | 0.50 | 0.80 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 6880 | 430 |
| RK16903 | 0.70 | 0.90 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 7520 | 470 |
| RK16903蓝色 | 0.70 | 0.90 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 5550/3980 | 347/248 |
| RK15905 | 0.90 | 0.90 | 15.3 | 5 | 1600 | 900 | 2.1 | 2.77 | 7840 | 490 |
| RK151105 | 0.90 | 1.10 | 15.3 | 6.3 | 1600 | 900 | 2.45 | 2.85 | 9280 | 580 |
| RK12904 | 0.90 | 0.90 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 9600 | 600 |
Applicant:
Mainly used in belt type filter press,
the rubber belt type vacuum filter,
horizontal vacuum belt filter.
Features of the belt:
It is made of monofilament and multifilament with special cross-section, which can intercept materials of 2-10 microns, and the material is easy to glass
The high-strength joint process makes the product joint firmly, not easy to break the vacuum, and therefore has a long service
life.
We can add fillings according to customers' requirements to change the air permeability.
It has stable structure, also, good water and heat resistance (up to 180℃)
