| Material: | 100% Polyester Monofilament | Brand Name: | R&K |
|---|---|---|---|
| Roll Width: | 1M-3.9M | Length: | 50m/ As Require |
| Monofilament: | Yes | Mesh Count: | 33-420 Mesh/inch |
| High Light: | 145 inch screen printing mesh,sgs certificate screen printing mesh,145 inch monofilament mesh screen |
||
Monofilament 145 Inch 33 Micron Screen Printing Mesh With Sgs Certificate
Monofilament screen printing mesh details information:
Monofilament screen printing mesh is the carrier of the directly plate making and printing.Polyester printing mesh are widly used in ceramic print,glass print,textile print,graphic print, it is plain weave mesh,twill weave is not available on the printing industry.
Material: 100% monofilament polyester
Mesh count:30 mesh per inch to 460 mesh per inch
Roll width: 50m / 100m / 300m / 500m / 1000m / 1500m
Color: white,yellow,red,orange.
Quality:With high quality domestic and imported raw material,advanced weaving looms and test instruments.
Monofilament screen printing mesh specification:
| Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thickness (um) | Thickness Tollerance (+/- um) | Theoretical Ink (cm3/m2) | Weight (g/m2) | Tension value(N/CM) | ||
| 165-31PW(S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | 25-26 | ||
| 150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | 30-31 | ||
| 150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | 24-25 | ||
| 140-34TW(T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | 27-28 | ||
| 140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | 26-28 | ||
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | 22-24 | ||
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | 27-28 | ||
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | 33-35 | ||
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | 25-26 | ||
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | 20-23 | ||
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | 30-32 | ||
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | 26-27 | ||
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 | 34-35 | ||
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 | 34-35 | ||
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 | 37-38 | ||
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 | 34-35 | ||
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 | 33-34 | ||
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 | 32-33 | ||
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 | 39-40 | ||
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 | 33-34 | ||
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 | 34-35 | ||
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 | 33-34 | ||
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 | 35-36 | ||
| 54-70PW(HD) | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 | 39-40 | ||
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 | 33-34 | ||
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 | 26-27 | ||
| 53-45PW(S) | 135 | 2:2 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 | 26-27 | ||
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 | 34-35 | ||
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 | 26-27 | ||
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 | 43-44 | ||
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 | 41-42 | ||
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 | 39-40 | ||
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 | 36-39 | ||
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 | 35-37 | ||
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 | 26-28 | ||
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 | 24-25 | ||
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 | / | ||
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 | / | ||
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 | / | ||
| 21-80PW(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 | / | ||
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 | / | ||
| PW:TW:SL；S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request. | ||||||||||||
Features For Thermal Screen Printing Mesh:
Monofilament screen printing mesh application:

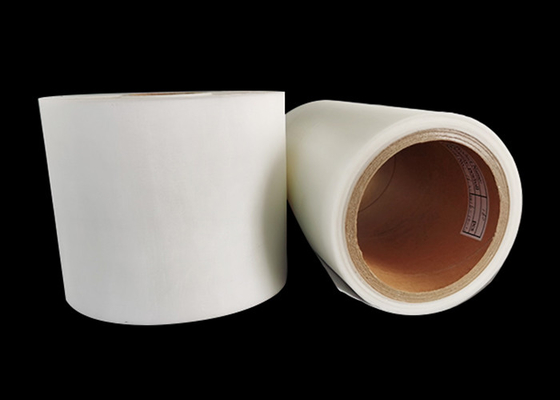

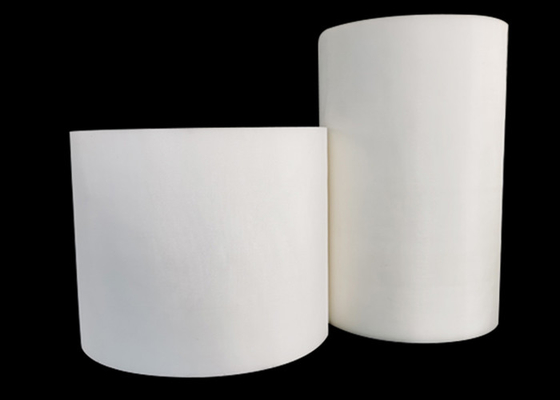

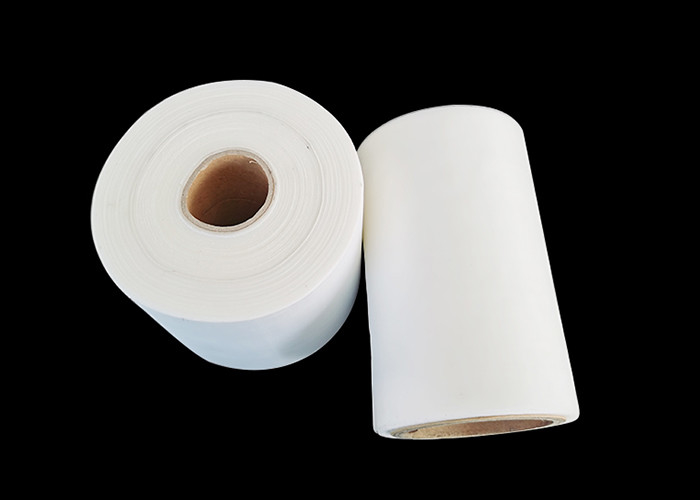

Photo of the thermal screen printing mesh:
