| Keywords: | Spiral Mesh Belt | Belt Material: | 304 Stainless Steel |
|---|---|---|---|
| Chain Material: | 304 Stainless Steel | Selling Points: | Long Life Time |
| Belt Application: | Seafood Frozen Oven | Delivery Time: | 10 Days After Receiving Your Payment |
| Package: | Plywood Box | Product Name: | Seafood Frozen Oven 304 Stainless Steel Wire Mesh Spiral Mesh Belt |
| High Light: | spiral wire mesh,spiral conveyor belt |
||
Seafood frozen oven 304 stainless steel wire mesh spiral mesh belt
Introduction of spiral mesh belt
Stainless steel spiral mesh belt is the good cornering performance . It can achieve a 180 degree turn and runs smoothly. It has a flat mesh surface. It can carry heavier pressure and tension; It has good ventilation and air permeability, which is clean and non-toxic, and is easy to clean. It is very convenient to repair and disassemble.It also can be customized according to customer's needs.
Specification of spiral mesh belt
Item: Spiral mesh belt
Material : Low carbon steel , 45 # steel , 304 stainless steel , 1Cr18Ni9Ti stainless steel , 0Cr18Ni14NO2CU2 acid resistant steel.
Common size : Common specifications are 700mm , 800mm wide , but can also be manufactured according to customer demand .
Surface treatment : The mesh belt usually has a special treatment to the surface , oil , pickling or electrolytic polishing .
Features : Excellent running capabilities and can go 180 degree curves . Smooth belt surface with good air circulation . Can bear high pressure and stress . Easy to maintain and dismantle , side guards available . Easy to clean
Usage : It is widely used in glass industry, mesh belt furnace, decorating furnace mesh belt. Food processing industry, dehydrated vegetables , frozen food before processing , machine belt , chain mesh , powder metallurgy , metal heat treatment, hardening , sintering , brazing, baking and so on .
Detail size of spiral mesh belt
| Item | Pitch | Belt width | Rod diameter | Wire diameter | U-shaped chain link height | Width of U-shaped chain link |
| Normal chain link type | 3/4" | 2.2 | 5mm | 2mm | 11mm | 28mm |
| Normal chain link type | 1" | 1.7 to 2.2 | 5mm | 2mm | 11mm | 29mm |
| Heavy duty chain link type | 1" | 2.2 | 5mm | 2mm | 11mm | 36mm |
| Heavy duty chain link with double reinforcing plate links | 1" | 1.7 to 2.2 | 5mm | 2mm | 11mm | 41mm |
| With middle chain links | 3/4" | 1.1 (inner) | 5mm | 2mm | 11mm | 28mm |

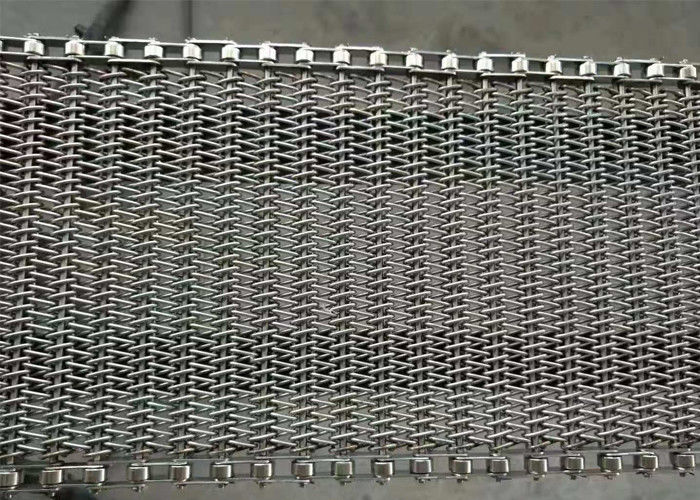

Pictures of spiral mesh belt
