Product Details:
Payment & Shipping Terms:
|
| Material: | 316 Stainless Steel | Main Features: | Large Open Area And Flat Surface |
|---|---|---|---|
| Application: | Food Frozen | Package: | Plywood Box |
| Keywords: | Honeycomb Conveyor Belt | Product Name: | Large Open Area Honeycomb Conveyor Belt 304 Stainless Steel For Food Frozen |
| High Light: | honeycomb wire mesh,stainless steel flat wire conveyor belt |
||

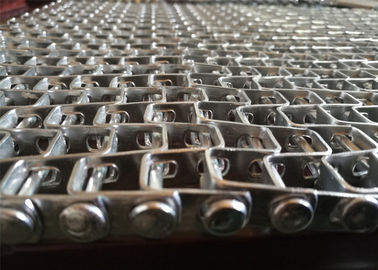

Large open area honeycomb conveyor belt 304 stainless steel for food frozen
Introduction of honeycomb conveyor belt
Product Name: honeycomb conveyor belt
Material: stainless steel wire , stainless iron wire , low carbon steel wire , galvanized iron wire
Features : large open area allows easy air flow on the tunnel freezer belt , long lifetime of the conveyorbelt
Usage: Product handling systems , Sorting systems , Washing systems , Bread production systems , Drying systems , Cooling systems , Food processing .
|
Item |
Size(mm) | Sheet thickness(mm) | sheet width(mm) | Material |
| honeycomb conveyor belt | 25.4*12.7 | 1.2 | 9.5 | carbon steel |
| 25.4*25.4 | 1.2 | 9.5 | stainless steel | |
| 27.2*18 | 1.5 | 12 | galvanized steel | |
| 27.2*27.2 | 1.5 | 12 | ||
| 38.1*38.1 | 1.5-2.0 | 12 | ||
| 38.1*19 | 1.5-2.0 | 12 | ||
| 50.8*25.4 | 2.0-2.5 | 15 | ||
| 50.8*50.8 | 2.0-2.5 | 15 |
Features of honeycomb conveyor belt
The features of honeycomb conveyor belt are easy flow of air , liquids or gases , Flat surface , easy to clean , easy to replace the damaged parts which are damaged , made from cross rods and flat metal strip , Can be used at conveyor speeds of less than 1 meter per minute to about 25 meters per minute , Large open area .
Application of honeycomb conveyor belt
Product handling systems
Sorting systems
Washing systems
Painting
Cleaning
Transferring
Parts washing
Bread production systems
Drying systems
Cooling systems
Food processing
Freezing
Bakery
