Polyester Sludge Dewatering Mesh Belt

Polyester Sludge Dewatering Mesh Belt
Polyester Sludge Dewatering Mesh Belt Polyester Sludge Dewatering Mesh Belt Polyester Sludge Dewatering Mesh Belt

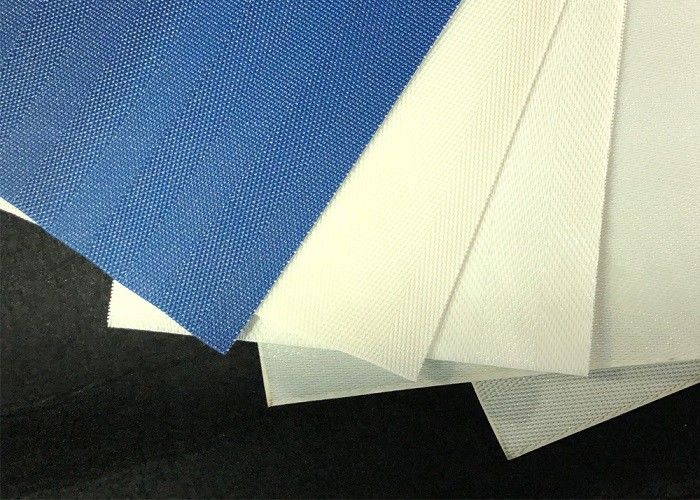

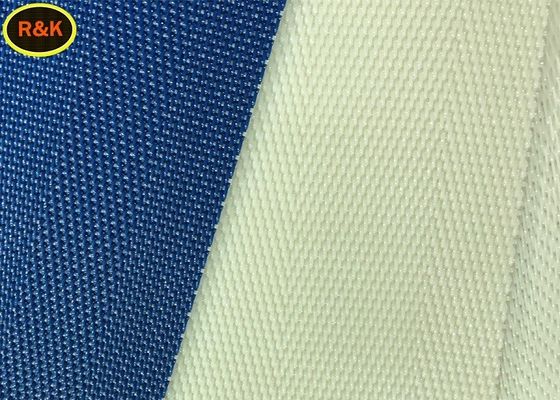

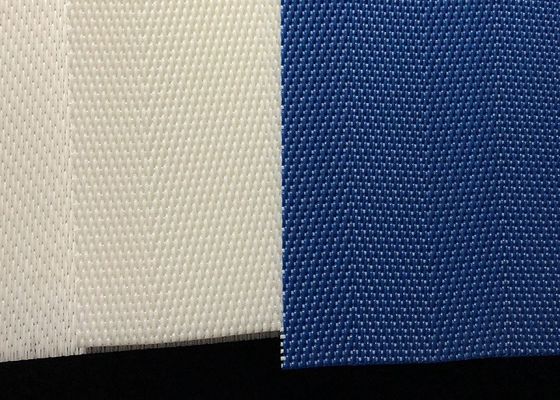

Large Image :  Polyester Sludge Dewatering Mesh Belt

Product Details:
Place of Origin: China
Brand Name: RK
Certification: no
Model Number: RKP01
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: 16.5USD/square meter
Packaging Details: Color woven bag+wooden case
Delivery Time: 5-10days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000square meter per month
Detailed Product Description
Material: 100% Polyester Color: White And Blue
Size: Can Be Customzied Size: Resin Glued Side
Connection: Clipper Connection Usage: Sludge Dehydration Paper Pulp
Application: Juice Squeeze
High Light:

polyester sludge dewatering mesh belt

,

100 polyester sludge dewatering mesh

,

clipper polyester sludge dewatering mesh

Introduction:

Polyester Sludge dewatering mesh belt also called filter press fabrics

It can be used for sludge dewatering in enviorment industry,  pulp in paper making  industry and fruit juice squeezing, mining smelting, mine tailings treatment and other pressure filtration industries.



Feature:

They have good water permeability and sludge invisible, acid and alkali resistance. Due to its design structure, the sludge is easily peeled from the filter cake, so the screen is easy to clean and has a long working time. Mainly supporting belt filter press, vacuum rubber belt filter and horizontal vacuum belt filter.



Details:

1.Polyester Sludge Dewatering Belt Mesh/Polyester Fabric have high tensile strength, it is really flexicity, easy to flod and paking.

2.The Connection place of the belt is bonding by good quality AB glue, it is clear and string. The connection place is the stainless steel clipper connection. It is good abrasion resistance, have a long service time.



Specification:

型号

Type



单丝直径

Wire Diameter(mm)

密度(根/厘米)

Density/cm

Strength(N/cm)

Tensile strength

网重

Weight kg/m2

经线

Warp

纬线

Weft

经线

Warp

纬线

Weft

网面

Surface

接口

Joint

RK31505 0.40 0.50 33 9 1600 900 0.80
RK26508 0.50 0.50 28 18.5 1600 900 1.20
RK2470 0.50 0.70 24 9 1600 650 1.23
RK22903 0.50 0.90 23 5.5 1600 900 1.4
RK27708 0.50 0.70 28 8.5 1600 900 1.53
RK26908 0.50 0.90 26.2 6.2 1600 900 1.49
RK24908 0.50 0.90 24.8 7.1 1600 900 1.48
RK24808 0.50 0.80 24.8 8 1600 900 1.4
RK16903 0.70 0.90 16.3 5 1600 900 1.5
RK16903蓝色 0.70 0.90 16.3 5.8/6 1600 900 1.7
RK15905 0.90 0.90 15.3 5 1600 900 2.1
RK151105 0.90 1.10 15.3 6.3 1600 900 2.45
RK12904 0.90 0.90 12.3 9.5 1600 900 2.2

Polyester Sludge Dewatering Mesh Belt 0
