304 Stainless Steel Wire Mesh Conveyor Belt For Cooling

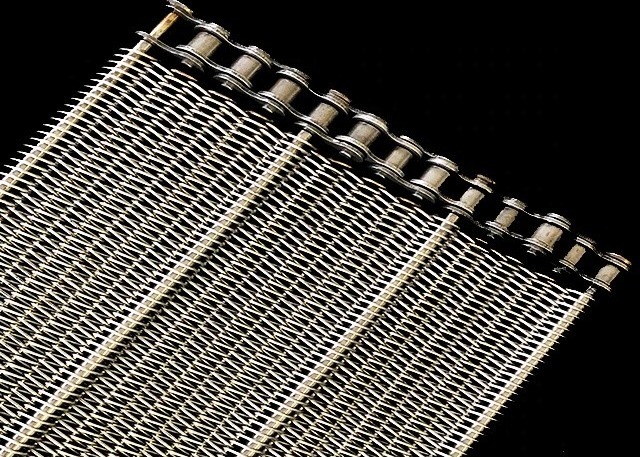

Large Image : 304 Stainless Steel Wire Mesh Conveyor Belt For Cooling

Product Details:

Place of Origin:	China
Brand Name:	Reking
Certification:	CE SGS
Model Number:	Wire Mesh Conveyor Belt

Payment & Shipping Terms:

Minimum Order Quantity:	3 meters
Price:	Negotiable
Packaging Details:	plywood box
Delivery Time:	up to your quantity
Payment Terms:	T/T L/C Western Union Paypal
Supply Ability:	5000 meters per month

Contact Now

Detailed Product Description

Features:	Large Open Area	Product Name:	304 Stainless Steel Wire Mesh Conveyor Belt For Cooling
Keywords:	Wire Mesh Conveyor Belt	Material:	304 316 316Lstainless Steel
Width:	70cm	Length:	10m
Usage:	Croissant, Danish Pastry Cooling	Package:	Plastic Film And Wooden Box
Highlight:	304 stainless steel conveyor belt , wire mesh cooling conveyor belt , stainless steel wire mesh belt

304 Stainless Steel Wire Mesh Conveyor Belt For Cooling

Stainless Steel Wire Mesh Conveyor Belt Introduction

Stainless steel wire mesh conveyor belts are engineered for applications that require an extremely rugged, long lasting belt. Stainless steel wire mesh conveyor belt greater strength, carrying capacity, and open flat surface profile is the answer to all your heavy-duty conveying needs, whether you have a new or a replacement application.Stainless steel has almost limitless options and its configurations are custom designed to meet your requirements.

Stainless Steel Wire Mesh Conveyor Belt Datas

Product Name	304 Stainless Steel Wire Mesh Conveyor Belt For Cooling
Certificate	SGS
Technique	wire mesh conveyor belt
Material	201,304,316L,310S,410 etc
Specification	· Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. · Rod diameter: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm. · Wire diameter: 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm. · Spiral pitch: 2.4 mm to 100 mm. · Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm. · Belt width: 200 mm to 6,000 mm.
Application	Drying,Cooling,Freezing,Pasteurizing,Blanching,Baking and Washing machine
Size	Max width can reach to 4000mm , belt length can be customized as your machine.
Other services	Special requirements can be customized

Stainless Steel Wire Mesh Conveyor Belt Features

Features and benefits of eye link conveyor belt are Heavy-duty conveying requirements , Flat carrying surface , Multiple drive options , Multiple spacers options , Variable wire spacing , Excellent air and fluid drainage , Custom specification for special applications , Numerous configuration options , Cross flights and side guards provided , Reduce downtime and maintenance .

Stainless Steel Wire Mesh Conveyor Belt Application

Typical applications of eye link conveyor belt are baking , Cooking , Cooling , Heating , Drying , Freezing , Blanching , Washing , Frying , Sorting , Grading , Loading , Elevating

Stainless Steel Wire Mesh Conveyor Belt Quality Control

304 Stainless Steel Wire Mesh Conveyor Belt For Cooling 0
