| Name: | Polyester Power Plant Wet Desulfurization Soild-Liquid Separation Mesh Screen Belt | Color: | Orange |
|---|---|---|---|
| Width: | 0.5-4m | Uasge: | Power Plant |
| High Light: | power plant polyester mesh belts,4m width polyester mesh belts,power plant polyester mesh conveyor belt |
||

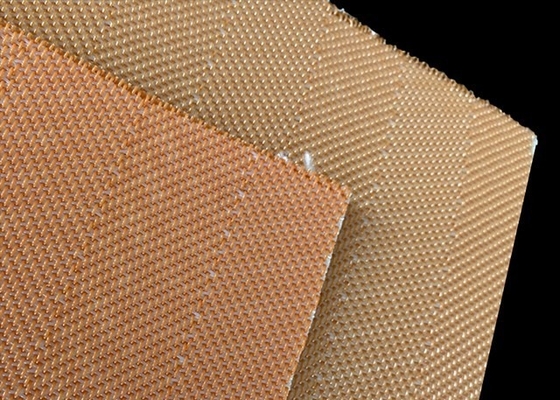

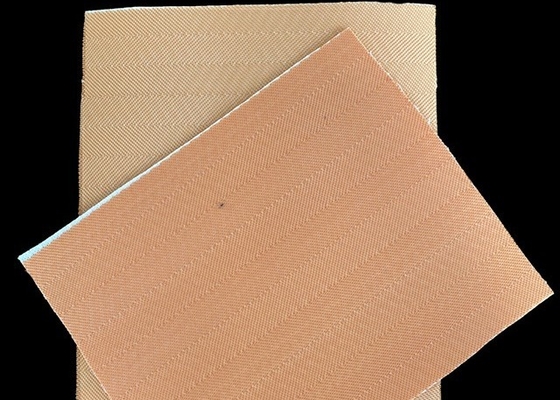

Vacuum Filter Cloth Polyester Mesh Belts For Vacuum Belt Press Filter
Introduction:
Polyester vacuum filter belt is mainly used for FGD in power plant, mine tailings disposal, metallurgical. Chemical, coal chemical, food, pharmaceutical, environmental protection and other solid-liquid separation industries.
The belt have the characteristics of stable running, not easy to wrinkled, high filtration rate and it can peel off easily from the filter cake. Mainly matching with vacuum rubber belt filter, horizontal vacuum belt filter, vacuum drum filter and vertical filter press.
The wet limestone flue gas desulphurization was due to reliable operation, high desulfurization efficiency, large limestone reserves, easy extraction, and low price, and then the flue gas desulphurization in thermal power plants. The device accounts for about 85%
Vacuum filter belts are specifically designed for the separation of solids from fluids in horizontal belt filter systems. We provide synthetic filter fabric solutions for horizontal vacuum belt filters in paper making, chemical, mineral, environmental protection, flue-gas desulfurization, fertilizer production applications.
Our filter fabric belts are made from high quality materials such as PET,PP.The selection of good polymers helps to make our belts achieve better performance in chemical (acid and alkaline) resistance, temperature resistance.
Various types of material and unique weaving structure is adopted in the manufacture of our filter belts to enhance the construction stability and mechanical stress. Special finishing techniques are used to alter the properties of the belt and optimize its filtration characteristics in operation. We offer soild and reliable seams, edge reinforcement for the whole belt range and installation guide.Our filter fabrics are made with high interception precision which can meet
|
Type |
Wire Diameter(mm) | Density(wire/cm) |
Tensile strength N/cm |
Weight Kg/m2 |
Air Permeability m3/m2h |
Filter Size um |
|||
| Warp | Weft | Warp | Weft | Surface | Joint | ||||
| 27508 | Flat Yarn 50x32 | 6x0.18+0.5 | 28.5 | 25 | 2200 | 1000 | 1.20 | 1600 | 50-80 |
| 27508-1 | Flat Yarn 50x32 | 600Dwire＋0.5 | 28.5 | 21 | 2200 | 1000 | 0.90 | 720 | 20-50 |
| 27508-2 | Flat Yarn 50x32 | Polyester wire | 28.5 | 23.5 | 2200 | 1000 | 1.10 | 310 | 2-10 |
| Product Name | Polyester Power plant desulfurization mesh screen |
| Color | Orange |
| Technique | Machine woven |
| Material | 100% polyester |
| Connection type | Belt with seam& edge, Sheets with edge |
| Size | Max width width 4000mm, the length can be customized |
Packing detail:
We always use poly bag for the goods which ship by air, so that customer can save freight free
Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
There also have some customer request us to use the carton to packing their goods
We can according to customer's requirement
