| Compilation Method: | Plain Weave | CFM: | 100-1500 |
|---|---|---|---|
| Thickness: | 1.3-3.5mm | Material: | 100% Polyester |
| Temperature Resistance: | 200 ℃ | Air Permeability: | 2000-10000 M3/m2h |
| Sample: | Available | Packing: | Woven Bags And Wooden Boxes |
| High Light: | 2.1mm thickness polyester sludge dewatering belt,spiral interface polyester sludge dewatering belt,4.3mm thickness polyester spiral belt |
||

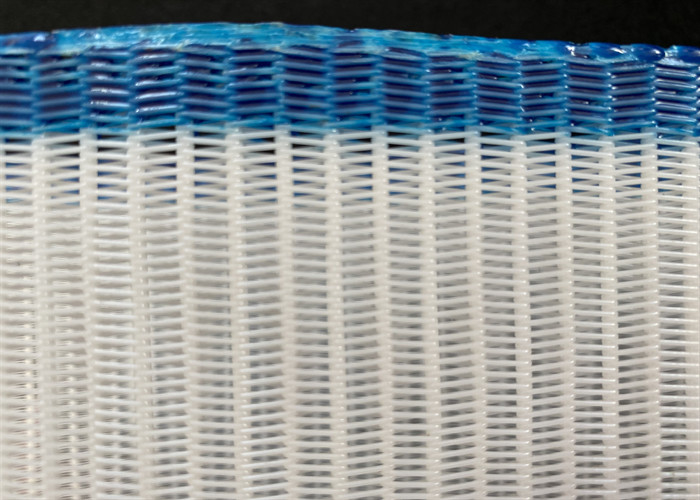

Polyester spiral mesh is also a monofilament polyester mesh but not like a woven fabric instead this is
a polyester mesh with spiral twisted wires where pins hold the spirals together like a chain Most of the
polyester spiral mesh is used within the dewatering industry to separate sludge from water within filter belt presses
Polyester spiral mesh belt has excellent features such as high temperature resistance acid and alkali resistance
abrasion resistance good air permeability and so on It is durable and has a long service life
● Acid and alkali resistance high temperature resistance long work time non-toxic is woven carpet canvas
and general network several time
● With smooth surface the tensile strength good permeability high heat transfer efficiency for the user to save energy
| Weaving Type | Model | Thread Diameter | Air permeability | |
| (mm) | (m3/m2h) | |||
| Warp | Weft | |||
| Large Loop | 10090 | 0.9 | 1.1 | 20000±500 |
| Medium Loop | 6890 | 0.7 | 0.9 | 18000±500 |
| Small Loop | 5080 | 0.5 | 0.8 | 15000±500 |
| Property | Description |
|---|---|
| Conveyor belt | Polyester spiral dryer mesh belt |
| Durability | Reusable |
| Color | Blue And White |
| Width | 0.1-6 M |
| Temperature resistance | 200 ℃ |
| Wire Diameter | 0.4-0.9mm |
| Length | 0.15-100m |
| Packing | Woven Bags And Wooden Boxes |
| CFM | 100-1500 |
| Edge disposal | Glue Edge |
| Weight | 0.8-2.5 KG/M2 |
Hebei Reking's Reking-001 Polyester spiral dryer mesh belt is the perfect choice for paper making
filter belt and polyester fabrics applications It is made in Hebei shijiazhuang with ISO9001 certification and
offered with a minimum order quantity of 1 pics. The price is negotiable and the delivery time is based on order quantity
The belt is packaged in wood and has a supply ability of 10000 pics. It is available in two colors – Blue and White – and
is packed in woven bags and wooden boxes. The thickness of the belt is 1.3-3.5mm and samples are available
The compilation method is plain weave
Hebei Reking provides customized polyester sludge dewatering belt services with high quality
Our polyester press mesh belt, dryer belt, filter mesh belt and polyester sludge dewatering belt have the following features:
Our polyester sludge dewatering belt is designed for maximum efficiency and minimum maintenance, and is suitable for a wide range of applications. If you are interested in our polyester sludge dewatering belt, please contact us for more information.
Packaging and Shipping for Polyester Sludge Dewatering Belt:
Our Polyester Sludge Dewatering Belt is packaged in rolls that are wrapped in a protective film. The film is then sealed to protect the belt from dust and moisture. To ensure safe delivery, the rolls are placed on pallets and shrink-wrapped. The pallets are then loaded onto a truck or other vehicle for shipping.
