Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Polyester | Sample: | Available |
|---|---|---|---|
| Application: | Paper Pulp And Juice Squeegee,mine Smelting | Air Permeability: | 2000-10000 M3/m2h |
| Packing: | Woven Bags And Wooden Boxes | Edge Disposal: | Glue Edge |
| Density /CM: | 5-33mm | Width: | 0.1-6 M |
| High Light: | reusable polyester sludge dewatering belt,filter press polyester sludge dewatering belt,filter press machine polyester spiral belt |
||

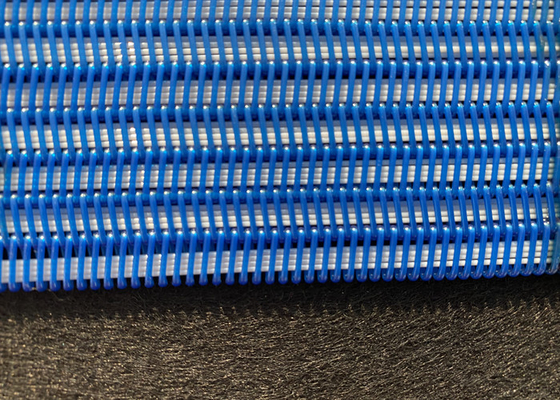

Polyester spiral press belt is made of high quality polyester fabrics, which is a kind of polyester press mesh belt
It has a Spiral ring interface to make sure a strong joint and glue edge for a great edge disposal
The belt is highly temperature resistant up to 200 ℃, and it has the air permeability ranging from 100-1500 CFM
This product is available for sample
1.Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life
2.With smooth surface, the tensile strength, permeability is good
3. According to user requirements in filling in the grid round wire (2 to 5) (a) or black flat silk, adjust at porosity
meet the process requirements
4.Carbon fiber through internal fill to achieve antistatic effect with high temperature resistance, wear resistance, etc
5.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use
6.Install easy to use, interface without imprint
1.Has the acid and alkali resistance, wear resistance, high temperature resistant long service life
2.With smooth surface, the tensile strength, permeability is good.
3. According to user requirements in filling in the grid round wire (2 to 5) (a) or black flat silk adjust at porosity
meet the process requirements.
4.Carbon fiber through internal fill to achieve antistatic effect with high temperature resistance wear resistance etc
5.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use.
6.Install easy to use, interface without imprint
| Type | Specification of single loop mm | Monofil diamater mm | Strength N/cm |
Thickness mm | Weight of mesh m2kg | Air permeability m3/m2h |
|
| Spiral loop monofil | Threading | ||||||
| Big loop | 1.2 | 1.2 | 1.2 | 2600 | 4.3 | 1.40 | 7500 |
| Medium loop | 8 | 0.68 | 0.9 | 2000 | 2 | 2 | 6080 |
| Small loop | 5.2 | 0.5 | 0.6 | 1800 | 1 | 1.5 | 4480 |
1.Widely used in the production of cardboard with a net kraft paper corrugated paper paper of train tickets and single whiteboard paper;
2.Instead of dry blanket, canvas of paper machine drying;
3.Also widely used in coal mining, food, medicine and other industries of conveyor equipment.
We provide customized services for Polyester Square Hole Mesh Belts, Paper Making Belts, and Dryer Belts
with our brand name, Hebei Reking, and model number, Reking-001. Our products have been certified with
ISO9001 and offer a minimum order quantity of 1 pic. Our pricing is negotiable and packaging is done with wood
Delivery time is based on order quantity and payment terms are 7-15 days. We have a supply ability of 10000 pics
Our joint is steel card interface, edge disposal is glue edge, thickness is 1.3-3.5mm, air permeability is 2000-10000 M3/m2h
and durability is reusable.
Packaging and Shipping
The polyester square hole mesh belt is packaged in sealed boxes and then shipped to customers by air, sea, or land.
The size of the boxes varies depending on the size of the belt and the quantity ordered. All shipments are accompanied by an invoice and other documents as required.
