Product Details:
Payment & Shipping Terms:
|
| Name: | 90 T Plain Weave Monofilament Silk Screen Printing Mesh Roll | Weave Style: | Plain Weave |
|---|---|---|---|
| Max Width: | 3.60meter | Popular Mesh Count: | 43T.55T.76T,90T,100T,120T,150T,165T |
| Brand Name: | R&K | Usage: | Textile Printing,leather Printing,glass Printing,ceramic Printing,touch Screen Printing... |
| Material: | 100% Polyester And Nylon | Package: | Roll Package |
| Width: | 1m | Length: | 50m |
| High Light: | 90t Screen Printing Mesh 3.60meter,Monofilament 90t Screen Printing Mesh,monofilament screen printing mesh 3.60meter |
||

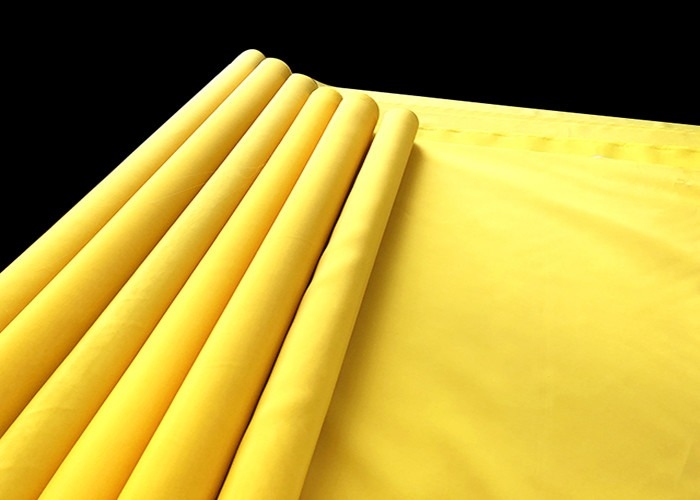

90 T Plain Weave Monofilament Silk Screen Printing Mesh Roll
Characteristic For The Monofilament Printing Mesh:
Low enlongation and high tensile strength;
Fast tensioning without damage to the threads;
Imported fabric strength;
High tension threshold and breaing point;
High durability and best tensility;
Nice appearance,standard size;
Clean and never dipigment;
Weare resistant,corrosion resistant,anti-resistant heat resistant,
Description For The Monofilament Printing Mesh:
| Product name | 90 T Plain Weave Monofilament Silk Screen Printing Mesh Roll |
| Material |
100% Polyester monofilament |
| Mesh Count | 7T-165T (18-420Mesh) |
| Aperture | 31 micron -1300micron |
| Thread Dia. | 31micron - 400 micron |
| Color | White( 15-180mesh count/inch) & Yellow (200-420mesh count/inch) |
| Length | 20 to 50m, The max can be 1000m |
Specification For The Monofilament Printing Mesh:
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
| 72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
| 72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
| 77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
| 77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
| 80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
| 90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
| 100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
| 110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
| 120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
| 120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
| 120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
| 130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
Application For The Monofilament Printing Mesh:
Screen printing mesh is widely used in ceramic, glass, electronic components, texture, clothing, CD/DVD marking industries, such as living metal advertisements, business cards, images..
The low elongation screen printing mesh produced by our factory has a wide range of meshes. Compared with the traditional polyester filament mesh, our screen printing mesh has significant advantages.
Packing printing,
Graphic sceen printing,
CD/DVD printing,
Printing plate,
Printing electronics,
PCB printing,
Solar battery printing,
Ceramic printing,
T-shirt printing,
Garment printing,
Gass printing.
