Product Details:
Payment & Shipping Terms:
|
| Features: | High Temperature Resistance | Brand Name: | REKING |
|---|---|---|---|
| Keywords: | Ptfe Fiber Glass Mesh Conveyor Belt | Material: | Fiberglass And Kevlar Material Teflon |
| Hole Size: | 1*1mm 2*2mm 4*4mm 6*6mm 8*8mm | Width: | 30cm To 4.3m |
| Weight: | 120-160g/m2 | Length: | We Will Do According To Your Demands |
| High Light: | Oil Resistant fiberglass conveyor belt,Food Grade Fiberglass Conveyor Belt,Oil Resistant Ptfe Conveyor Belt |
||

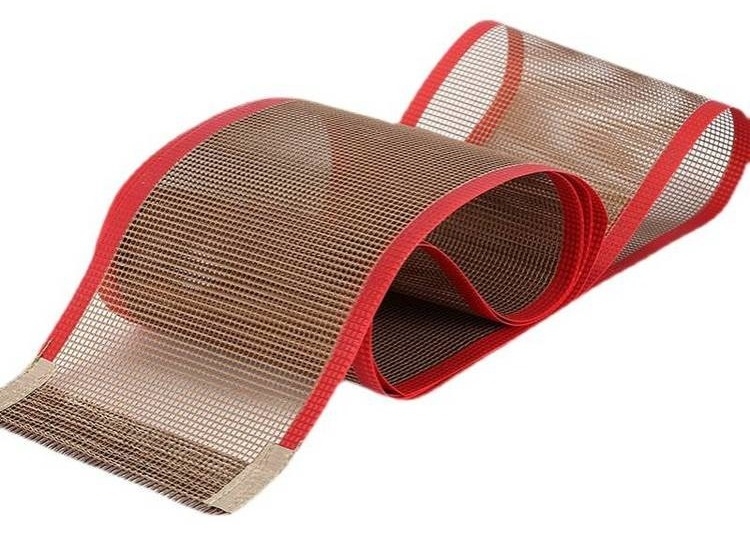

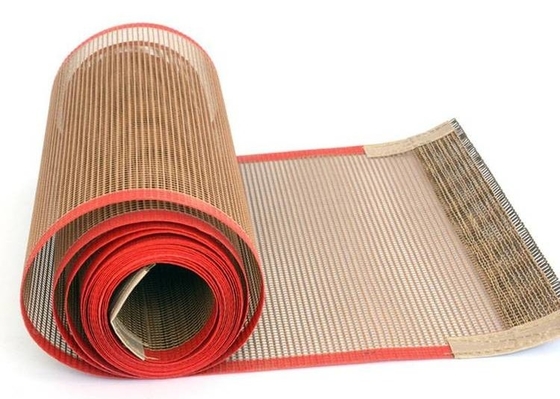

Food Grade Industry Oil Resistant Ptfe Fiber Glass Mesh Conveyor Belt
Teflon mesh conveyor belt
Conveyor Belt Specification
| Item No. | Mesh Size | Material | Thickness | Weight | Temperature Resistance | Max Width | Tensile Strength |
| (mm) | (mm) | (g/m2) | (°C) | (mm) | (N/cm) | ||
| 6001 | 1x1 | Fiberglass | 0.5 | 370 | -70~260 | 3000 | 310/290 |
| 6002 | 2x2 | Fiberglass | 0.7 | 450 | -70~260 | 3000 | 350/310 |
| 6003 | 4x4 | Fiberglass | 1.0 | 400 | -70~260 | 4000 | 390/320 |
| 6004 | 4x4 | Fiberglass | 1.0 | 450 | -70~260 | 4000 | 390/320 |
| 6007 | 4x4 | Fiberglass+ | 1.2 | 600 | -70~260 | 4000 | 895/370 |
| 6008 | 4x4 | Fiberglass | 1.0 | 500 | -70~260 | 4000 | 395/370 |
| 6010 | 4x4 | Fiberglass | 1.0 | 500 | -70~260 | 4000 | 900/600 |
| 6012 | 4x4 | Fiberglass | 1.0 | 550 | -70~260 | 4000 | 395/370 |
| 6013 | 10x10 | Fiberglass | 1.2 | 450 | -70~260 | 3000 | 360/300 |
| 6014 | 0.5x1 | Fiberglass | 0.5 | 420 | -70~260 | 3000 | 310/290 |
| 6015 | 2x2.5 | Fiberglass | 0.9 | 600 | -70~260 | 3000 | 390/320 |
Conveyor Belts Features
1. It is used between -196 °C and 300 °C, with weather resistance and anti-aging.
2. Resistant to chemical corrosion, resistant to strong acids, strong alkalis and various organic solvents;
3. Non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4. Dimensional stability (extension coefficient less than five thousandths), high strength, with good mechanical properties;
5. Anti-bending fatigue, can be used for smaller wheel diameters,
6. Resistant to pharmaceutical agents, non-toxic, almost resistant to all pharmaceutical products;
7. Rire retardant,
8. Breathability: The air permeability of the conveyor belt is high, the heat source is reduced, and the drying efficiency is improved.
Conveyor Belt Application
1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2. Shrinking machine for garment fabric, high-frequency and UV dryer.
3. Hot-air dryer, various of food baking, quick-frozen machines.
4. Food processing and packing.
5. Release sheet for sticky products.
