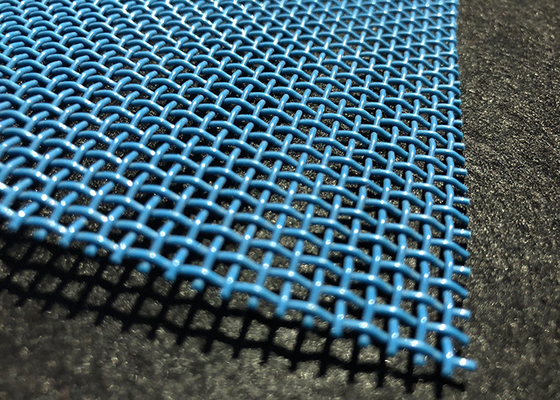

1.5Mm High Temp Resistance Polyester Mesh Belt For Mining Non revealed sludge

1.5Mm High Temp  Resistance Polyester Mesh Belt For Mining Non revealed sludge
1.5Mm High Temp  Resistance Polyester Mesh Belt For Mining Non revealed sludge

Large Image :  1.5Mm High Temp Resistance Polyester Mesh Belt For Mining Non revealed sludge

Product Details:
Place of Origin: China Hebei
Brand Name: R&K
Certification: ISO9001
Model Number: HH-01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Meter
Price: According to the quantity
Packaging Details: poly bag
Delivery Time: 4-7 Work Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 meter per week
Detailed Product Description
Features: Non-revealed Sludge Name: 2*2 MM Customized Polyester Square Hole Mesh Belt Special For Food Drying
Color:: White Blue Size:: 0.1-30m Long
Application:: Paper Mill Industry Advantage:: High Wear Resistance
Packing:: Simple Packing Durability: Repeatable Application
High Light:

High Temp Resistance Polyester Mesh Belt

,

Polyester Mesh Belt For Mining

,

Polyester Mesh Belt Non Revealed Sludge

1.5 Mm High Temperature Resistance Polyester Square Hole Mesh Belt Special For Mining

Polyester Square Hole Mesh Belt Product Introduction ​

Polyester square hole mesh belt mainly used in paper-making factory network
for paper machine to produce the  OARS paper network
man-made board factory shop installed mesh belt
food drying material selection, environmental protection and other industries use


Weaving Type Thread Diameter(mm) Density(No.s/cm) Strength (N/cm) Air Permeability(m³/m²h)
Warp Weft Warp Weft
2-shed plain weaving fabric 0.7 0.8 4.7-5.0 4.8-5.0 940 >20000
1.0 1.0 4.7-5.2 4.3-5.0 1600 >15000
0.7 0.7 8.0 7.0 ≥1600 11000
0.7 0.7 6.6-7.0 4.3-4.6 1100 >15000
0.55 0.55 7.5-8.0 8.5-9.0 850 850-6500
0.45 0.45 10.0 8.6 1600 1600
0.55 0.55 8.5-9.0 10-10.5 750 >10000
0.55 0.55 13.5 8.5 1800 6500
3-shed plain weaving fabric 0.55 0.6 10.0 9.0 1600 14000
0.9 0.9 7.8-8.0 5.0-5.5 2100 87500-8500
0.7 0.8 8.0 8.0 1600 10000
0.3 0.35 22.0 14.5 1200 13000
0.3 0.4 22.0 14.5 1200 13500




Product Name
Polyester Mesh Conveyor Belt
Material
100% polyester
Type
Plain Weave
Color
White/Blue
Mesh Aperture
1 x 1mm, 2 x 2mm, 4 x 4mm, 1.2 x 1.2mm, 800 x 800, 5 x 5mm etc
Features
High temperature resistance, abrasion resistance and aging resistance etc
Advantages
Larger air permeability, flat surface, good strength, long working time etc
Applications
Food Drying Conveyor, Paper Making and Paper Pulp, Wooden Industry
Matched filter machine
Food Dryer Conveyor Belt
Seam type
Spiral Seam/Pin Joint/Steel Joint/ Woven Edge
Size
Customized
Main markets
South Asia, North America, South Amercia, South Africa, Europe etc



Polyester Square Hole Mesh Belt Product ​Description
1 the width of polyester plain weave mesh is usually 0.2 meter - 6 meter
   the length is available as per requirement
2 the opening size can be 400 micron 500micron 600micron 700micron 800micron

   1000micron 1500micron 1800micron 2000micron 2500micron and 3000micron
3 edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans
4 the joining type of polyester plain mesh screen can be endless

     steel pin joining,spiral ring joining and pin ring joining

Polyester Square Hole Mesh Belt Product Introduction Advantage

1) High strength,standard plain weave ,uniform opening

2) Stand high working strength,durable,long work time

3) Resistance under 180 degrees

4) Waterproof

5) Shrink-Resistance

How to choose Polyester Square Hole Mesh Belt

polyester filter belt is widely used in Mineral industry -mining sieving, mineral separation gold benefication
Paper industry-paper pulps making, sulplate pulppacking and cardboard pulp
Dryer -Textile yarn,Others -tailings disposal, colliery, food, medicine etc

Polyester Square Hole Mesh Belt Packing detail

  1.  We always use poly bag for the goods which ship by air, so that customer can save freight free
  2. Wooden case is the best for ocean shipment because it can effective avoid the damage during shipping
  3. There also have some customer request us to use the carton to packing their goods
  4. We can according to customer's requirement


1.5Mm High Temp  Resistance Polyester Mesh Belt For Mining Non revealed sludge 0
1.5Mm High Temp  Resistance Polyester Mesh Belt For Mining Non revealed sludge 1

1.5Mm High Temp  Resistance Polyester Mesh Belt For Mining Non revealed sludge 2

1.5Mm High Temp  Resistance Polyester Mesh Belt For Mining Non revealed sludge 3
1.5Mm High Temp  Resistance Polyester Mesh Belt For Mining Non revealed sludge 4
