Product Details:
Payment & Shipping Terms:
|
| Material:: | Small Loop Low Permeability Polyester Spiral Press Belt For Drying Industry | Color:: | Customer's Request |
|---|---|---|---|
| Size:: | Customer's Request | Application:: | Paper Mill Industry |
| Advantage:: | High Wear Resistance | Packing:: | Wooden Or Woven Bag |
| Material: | Polyester | Use: | Filter |
| High Light: | Low Permeability Polyester Mesh Belt,Drying Industry Polyester Mesh Belt,Low Permeability polyester conveyor belt |
||

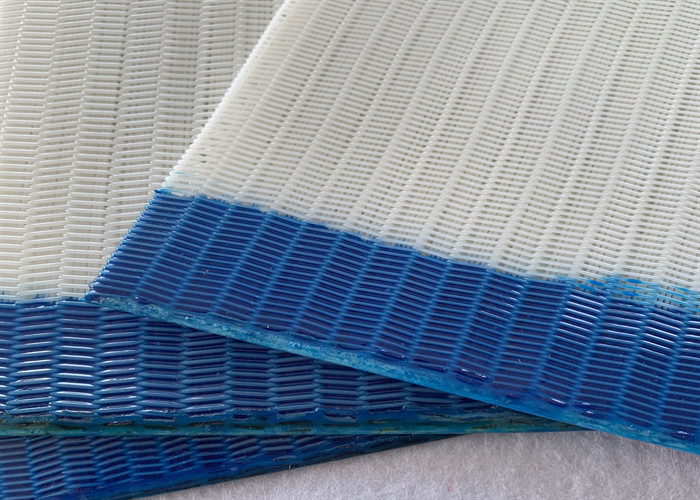

Small Loop Low Permeability Polyester Spiral Press Belt For Drying Industry
Polyester Spiral Press Mesh Belt Introduction
Polyester spiral mesh belts have a spiraled continuous and seamless screen structure
which is ideal for applications in which a seam would be unmeet due to mechanical loads
Meanwhile, the unique spiral linked weave type makes the polyester spiral mesh belts
flexible in warpage and the heat-setting treatment ensures the spiral belts durability and a long
productive life without deformation, easy to install clean and maintains
This kind of synthetic spiral fabrics are widely used as filter belts dryer screen belts or
conveyor belts in dewatering processes with fibrous products or for industry sludge dewatering
and drying nonwoven forming and thermal applications include drying of veneers manufacture of
gypsum plasterboard or for multi-stage dryers in the foodstuff processing etc
Synthetic polyester spiral dryer mesh belt fabrics
Huading's polyester spiral mesh belts can be made of 100% Polyester or anti-hydrolysis Polyester
for high temperature and high humidity or 100% PPS for high temperature 150-240°C
working condition, other kinds of material can be customized for antistatic, dirt-repellent
or enhanced abrasion-resistance performance etc
Various types in different yarn diameter 0.5mm-1.1mm small medium and large spiral rings
flat or round yarn, filled or unfilled are all available to achieve optimal air permeability rates
tracking stability high throughput rate and excellent filtration efficiency
| Material | 100% Polyester monofilaments |
| Grade | Excellent |
| Used | paper drying tea&food drying Coconut milk squeeze and filter pharmaceutical vinegar alcohol porcelain coal concentrate mining paper pulp sludge dewatering and drying etc |
| Color | White Blue Red |
Polyester Spiral Press Mesh Belt Description
Polyester Spiral Press Mesh Belt Features
| It has a variety of free shrinkling |
| It has high beaking elongation tolerance |
| It can use in filtration and sieving in varies filed |
| This fabric belt is widely used in all kinds of industries,such as printing |
| Polyester spiral link dryer fabric belt is also used in papermaking industry |
| Polyester spiral link dryer fabric belt with high strength |
Polyester Spiral Press Mesh Belt Advantage
1 Flat surface, not easily cracked
|
Polyester Spiral Press Filter Belt
|
|||||
|
Weaving Type
|
Model
|
Thread Diameter (mm)
|
Air permeability
(m³/m²h) |
||
|
Warp
|
Weft
|
filled with stuff
|
|||
|
Large Loop
|
4070
|
0.9
|
1.1
|
0.9×4
|
5500±500
|
|
0.9×5
|
4500±500
|
||||
|
Medium Loop
|
3868
|
0.7
|
0.9
|
0.8×3
|
4750±500
|
|
0.8×4
|
4200±500
|
||||
|
Small Loop
|
3252
|
0.52
|
0.7
|
0.68×3
|
15000±500
|
