Product Details:
Payment & Shipping Terms:
|
| Name: | Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt | Color:: | White, Blue And Red |
|---|---|---|---|
| Size:: | 0.1-30m | Application:: | Paper Mill Industry |
| Advantage:: | High Wear Resistance | Packing:: | Simple Packing |
| Material: | 100% Polyester | Proper Temperature: | +150°C To -75°C |
| High Light: | Dryer Mesh Belt For Compound Machine,3cm Glue Edge Dryer Mesh Belt,3cm Glue Edge Polyester Mesh Belt |
||

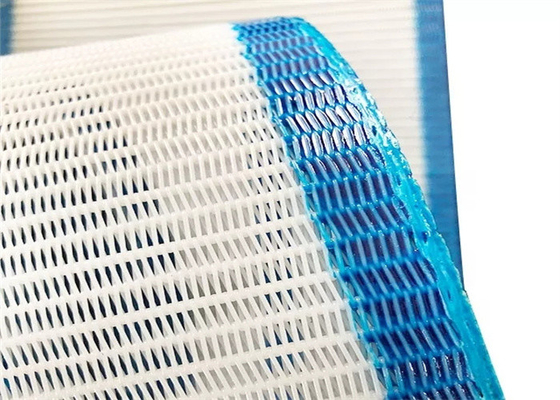

White Polyester Spiral Dryer Mesh Belt Special For Compound Machine With 3cm Glue Edge
Polyester Mesh Belt Introduction
Polyester spiral mesh belts have a spiraled continuous and seamless screen structure
which is ideal for applications in which a seam would be unmeet due to mechanical loads
Meanwhile, the unique spiral linked weave type makes the polyester spiral mesh belts flexible in warpage
and the heat-setting treatment ensures the spiral belts durability and a long, productive life without deformation
easy to install clean and maintains
This kind of synthetic spiral fabrics are widely used as filter belts, dryer screen belts or conveyor belts
in dewatering processes with fibrous products, or for industry sludge dewatering and drying
nonwoven forming, and thermal applications include drying of veneers manufacture of gypsum plasterboard
or for multi-stage dryers in the foodstuff processing etc
Synthetic polyester spiral dryer mesh belt fabrics
Huading's polyester spiral mesh belts can be made of 100% Polyester or anti-hydrolysis Polyester for
high temperature and high humidity, or 100% PPS for high temperature 150-240°C working condition
other kinds of material can be customized for antistatic dirt-repellent or enhanced abrasion-resistance performance etc
Various types in different yarn diameter 0.5mm-1.1mm, small, medium and large spiral rings
flat or round yarn filled or unfilled are all available to achieve optimal air permeability rates tracking stability
high throughput rate, and excellent filtration efficiency
Polyester spiral press filter belt specification:
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 05102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 06702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 07102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
Polyester Mesh Belt Data Sheet
| Product Name | Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt |
| Loop Size | Small Medium Large Loop |
| Material | 100% Polyester |
| Applicable Industries | Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry |
| Color | Blue , white and Red |
| Certificate | ISO9001 |
| Type |
Polyester Dryer Belt Polyester Sprial Press Filter Belt |
| Packaging | Plywood Case and woven mesh |
Polyester Mesh Belt Advantage
1 Flat surface, not easily cracked
