Product Details:
Payment & Shipping Terms:
|
Features: | Non-revealed Sludge | Name: | White And Blue 2mm Polyester Plain Weave Square Hole Mesh Belt |
---|---|---|---|
Color:: | White Blue | Size:: | 0.1-25m Long |
Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
Packing:: | Simple Packing | Durability: | Repeatable Application |
High Light: | Polyester Mesh Belt 0.1m,Polyester Mesh Belt 25m,dryer mesh belt 0.1m |

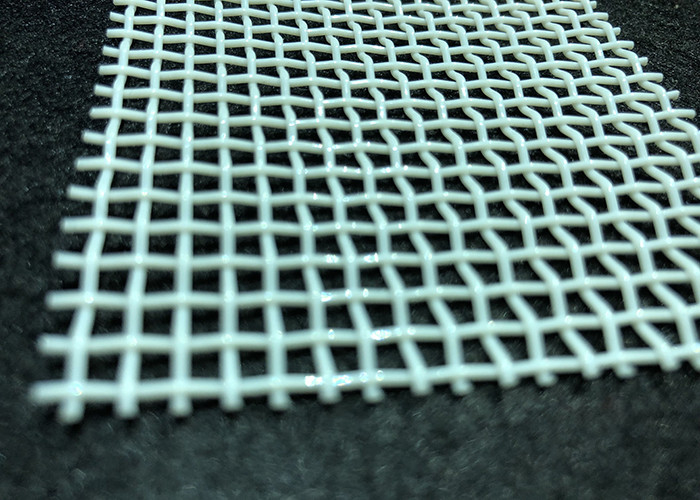

White And Blue 2mm Polyester Plain Weave Square Hole Mesh Belt
Polyester Square Hole Mesh Belt Product Introduction
The polyester linear screen cloth mesh belts cloth is made out by high viscosity Polyester monofilament yarn
and weaving in 1:1 plain weave to get uniform and defined mesh opening which makes the polyester mesh belts
in high separation efficiency and optimum filtration effects Furthermore our linear screen filter belts are all being
thermal setting to get high lateral stability and optimum running properties
HD’s linear screen polyester mesh belts have a wide range of aperture size to meet the various application
respectively blue and white color both available
Product Name
|
White 0.72X0.72mm Polyester Plain Weave Square Hole Mesh Belt For Paper Mill | ||
Material
|
100% polyester
|
||
Type
|
Plain Weave
|
||
Color
|
White/Blue
|
||
Mesh Aperture
|
0.72x0.72mm 1 x 1mm, 2 x 2mm, 4 x 4mm, 1.2 x 1.2mm, 5 x 5mm etc
|
||
Features
|
High temperature resistance, abrasion resistance and aging resistance etc
|
||
Advantages
|
Larger air permeability, flat surface, good strength, long working time etc
|
||
Applications
|
Food Drying Conveyor, Paper Making and Paper Pulp, Wooden Industry
|
||
Matched filter machine
|
Food Dryer Conveyor Belt
|
||
Seam type
|
Spiral Seam/Pin Joint/Steel Joint/ Woven Edge
|
||
Size
|
Customized
|
||
Main markets
|
South Asia, North America, South Amercia, South Africa, Europe etc
|
Polyester Square Hole Mesh Belt Product Introduction Description
1) Both food grade and industrial grade, please contact us to get the testing report
2) Precise aperture to achieve excellent filtration results and efficiency
3) Smooth running properties
4) Mesh opening 0.4mm-5.0mm available
5) Heat resistance, could be customized for high-temperature application
6) Excellent chemical stability, Synthetic Fiber Chemical Properties Table
6) Excellent durability
7) Max. Width 5.6M with hot melt edges
8) Clipper seam, pin rings, spiral rings, endless connection type are all available.
9) Various and plenty stock for fast delivery to save your time
Polyester Square Hole Mesh Belt Product Introduction Advantage
