| Name: | Polyester Desulfurization Sludge Dewatering Machine Used Mesh Belt Filter Fabric | Color: | Orange |
|---|---|---|---|
| Width: | 0.5-4m | Uasge: | Power Plant |
| High Light: | 0.5m width polyester mesh belt,desulfurization polyester mesh belt,sludge dewatering polyester mesh conveyor belt |
||

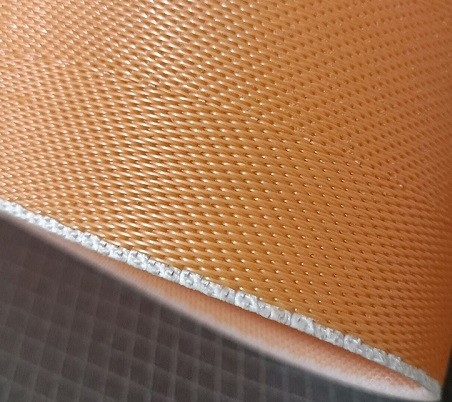

Polyester Desulfurization Sludge Dewatering Machine Used Mesh Belt Filter Fabric
Introduction:
Polyester vacuum filter belt is mainly used for FGD in power plant, mine tailings disposal, metallurgical. Chemical, coal chemical, food, pharmaceutical, environmental protection and other solid-liquid separation industries.
The belt have the characteristics of stable running, not easy to wrinkled, high filtration rate and it can peel off easily from the filter cake. Mainly matching with vacuum rubber belt filter, horizontal vacuum belt filter, vacuum drum filter and vertical filter press.
The wet limestone flue gas desulphurization was due to reliable operation, high desulfurization efficiency, large limestone reserves, easy extraction, and low price, and then the flue gas desulphurization in thermal power plants. The device accounts for about 85%
|
Type |
Wire Diameter(mm) | Density(wire/cm) |
Tensile strength N/cm |
Weight Kg/m2 |
Air Permeability m3/m2h |
Filter Size um |
|||
| Warp | Weft | Warp | Weft | Surface | Joint | ||||
| 27508 | Flat Yarn 50x32 | 6x0.18+0.5 | 28.5 | 25 | 2200 | 1000 | 1.20 | 1600 | 50-80 |
| 27508-1 | Flat Yarn 50x32 | 600Dwire＋0.5 | 28.5 | 21 | 2200 | 1000 | 0.90 | 720 | 20-50 |
| 27508-2 | Flat Yarn 50x32 | Polyester wire | 28.5 | 23.5 | 2200 | 1000 | 1.10 | 310 | 2-10 |
