| Name: | Polyester Press Filter Mesh Belt | Color: | Orange |
|---|---|---|---|
| Width: | 0.5-4m | Uasge: | Power Plant |
| High Light: | power plant desulfurization polyester mesh belt,machine woven polyester mesh belt,machine woven polyester mesh conveyor belt |
||

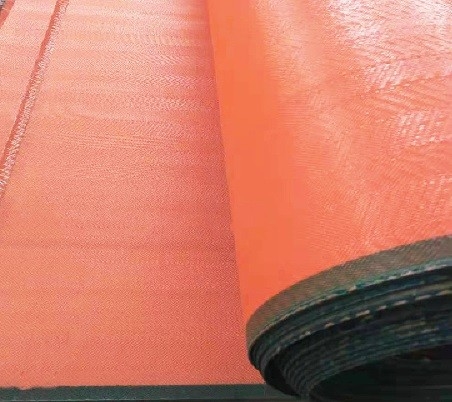

Polyester Power Plant Desulfurization Mesh Screen
Introduction:
Polyester vacuum filter belt is mainly used for FGD in power plant, mine tailings disposal, metallurgical. Chemical, coal chemical, food, pharmaceutical, environmental protection and other solid-liquid separation industries.
The belt have the characteristics of stable running, not easy to wrinkled, high filtration rate and it can peel off easily from the filter cake. Mainly matching with vacuum rubber belt filter, horizontal vacuum belt filter, vacuum drum filter and vertical filter press.
Application:
1.Compressors Machine
2.Air purifiers
3.Rubber belt vacuum filter
4.Horizontal vacuum belt filter
5.Vacuum drum filter
6.Vertical filter press
7.Power plant
|
Type |
Wire Diameter(mm) | Density(wire/cm) |
Tensile strength N/cm |
Weight Kg/m2 |
Air Permeability m3/m2h |
Filter Size um |
|||
| Warp | Weft | Warp | Weft | Surface | Joint | ||||
| 27508 | Flat Yarn 50x32 | 6x0.18+0.5 | 28.5 | 25 | 2200 | 1000 | 1.20 | 1600 | 50-80 |
| 27508-1 | Flat Yarn 50x32 | 600Dwire＋0.5 | 28.5 | 21 | 2200 | 1000 | 0.90 | 720 | 20-50 |
| 27508-2 | Flat Yarn 50x32 | Polyester wire | 28.5 | 23.5 | 2200 | 1000 | 1.10 | 310 | 2-10 |
| Product Name | Polyester Power plant desulfurization mesh screen |
| Color | Orange |
| Technique | Machine woven |
| Material | 100% polyester |
| Connection type | Belt with seam& edge, Sheets with edge |
| Size | Max width width 4000mm, the length can be customized |
