Plain Weaving Drying Mining Polyester Mesh Conveyor Belt Abrasion Resistance

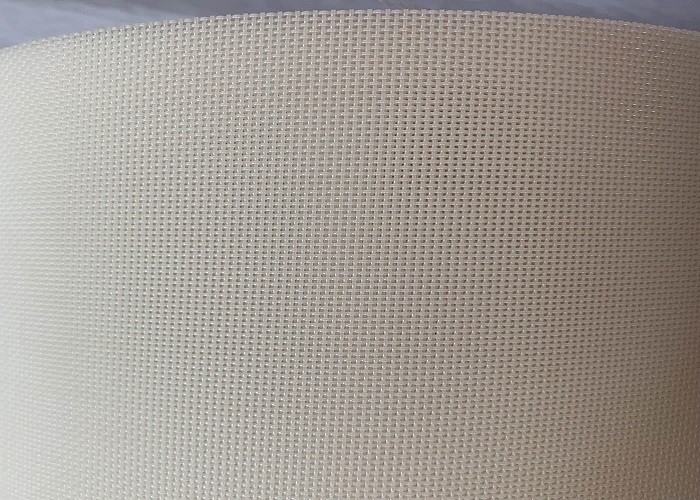

Large Image : Plain Weaving Drying Mining Polyester Mesh Conveyor Belt Abrasion Resistance

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	ISO9001
Model Number:	09502

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiate
Packaging Details:	Wooden box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 squaremeters peer week

Contact Now

Detailed Product Description

Product Name:	Food Grade Plain Weave Polyester Conveyor Mesh Belt For Drying Mining	Material:	100% Polyester
Color:	White	Usage:	Drying
Size:	Make As Require	Package:	Wooden Box
Highlight:	drying mining polyester mesh conveyor belt , plain weaving polyester mesh conveyor belt , abrasion resistance polyester mesh belt

Food Grade Plain Weave Polyester Conveyor Mesh Belt For Drying Mining

Parameter of the polyester conveyor mesh belt

Weaving Type	Thread Diameter(mm)		Density(No.s/cm)		Strength (N/cm)	Air Permeability(m³/m²h)
Weaving Type	Warp	Weft	Warp	Weft	Strength (N/cm)	Air Permeability(m³/m²h)
2-shed plain weaving fabric	0.7	0.8	4.7-5.0	4.8-5.0	940	>20000
	1.0	1.0	4.7-5.2	4.3-5.0	1600	>15000
	0.7	0.7	8.0	7.0	≥1600	11000
	0.7	0.7	6.6-7.0	4.3-4.6	1100	>15000
	0.55	0.55	7.5-8.0	8.5-9.0	850	850-6500
	0.45	0.45	10.0	8.6	1600	1600
	0.55	0.55	8.5-9.0	10-10.5	750	>10000
	0.55	0.55	13.5	8.5	1800	6500
3-shed plain weaving fabric	0.55	0.6	10.0	9.0	1600	14000
	0.9	0.9	7.8-8.0	5.0-5.5	2100	87500-8500
	0.7	0.8	8.0	8.0	1600	10000
	0.3	0.35	22.0	14.5	1200	13000
	0.3	0.4	22.0	14.5	1200	13500vv

Product name	Food Grade Plain Weave Polyester Conveyor Mesh Belt For Drying Mining
Material	100% polyester
Color	White
Usage	Drying
Size	Make as require
Package	wooden box

Polyester mesh conveyor belt application :

Washing, rinse and/or dry fruits, vegetables and flower bulbs;
Dried herbal medicine;
Drainage and washing fish
Hedu;
Cooling products;
Filter and sieve;
Washing industry cleaning in the waste recycling industry;
Drainage process.
Dry garlic, etc.

Polyester mesh conveyor belt function:

1 acid and alkaline, abrasion resistance, high temperature resistance, long -term service life, is a woven net dry blanket, canvas, and several times.

2 Smooth surface, stretching strength, and good permeability. High -pass thermal efficiency for users to save energy.

3 Installation, easy to use, no stain interface, the intensity can reach 100 % normal mesh belt.

Plain Weaving Drying Mining Polyester Mesh Conveyor Belt Abrasion Resistance 0
