Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plain Weave 09502 Polyester Conveyor Mesh Belt For Garlic Drying | Material: | 100% Polyester |
|---|---|---|---|
| Color: | White | Usage: | Drying |
| Size: | Make As Require | Package: | Wooden Box |
| Key Word: | Polyester Plain Weave Mesh Belt | Advantage: | High Wear Resistance |
| High Light: | plain weaving iso polyester mesh belt,garlic drying polyester mesh belt,garlic drying polyester conveyor mesh belt |
||

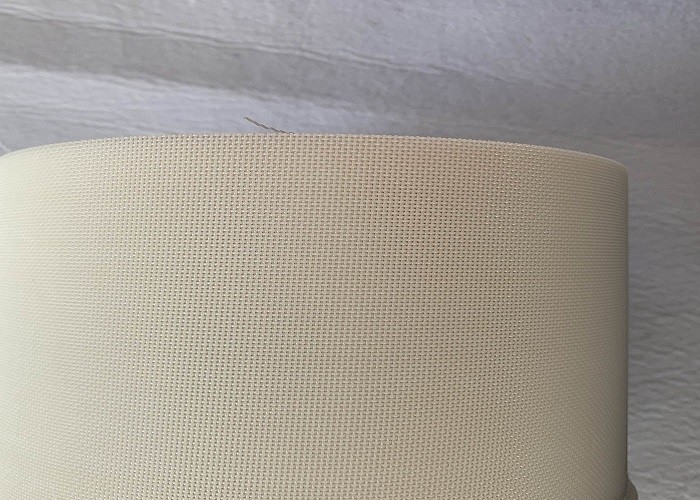

Plain weave 09502 polyester conveyor mesh belt for garlic drying
Parameter of the polyester conveyor mesh belt
| Weaving Type | Thread Diameter(mm) | Density(No.s/cm) | Strength (N/cm) | Air Permeability(m³/m²h) | ||
| Warp | Weft | Warp | Weft | |||
| 2-shed plain weaving fabric | 0.7 | 0.8 | 4.7-5.0 | 4.8-5.0 | 940 | >20000 |
| 1.0 | 1.0 | 4.7-5.2 | 4.3-5.0 | 1600 | >15000 | |
| 0.7 | 0.7 | 8.0 | 7.0 | ≥1600 | 11000 | |
| 0.7 | 0.7 | 6.6-7.0 | 4.3-4.6 | 1100 | >15000 | |
| 0.55 | 0.55 | 7.5-8.0 | 8.5-9.0 | 850 | 850-6500 | |
| 0.45 | 0.45 | 10.0 | 8.6 | 1600 | 1600 | |
| 0.55 | 0.55 | 8.5-9.0 | 10-10.5 | 750 | >10000 | |
| 0.55 | 0.55 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 0.55 | 0.6 | 10.0 | 9.0 | 1600 | 14000 |
| 0.9 | 0.9 | 7.8-8.0 | 5.0-5.5 | 2100 | 87500-8500 | |
| 0.7 | 0.8 | 8.0 | 8.0 | 1600 | 10000 | |
| 0.3 | 0.35 | 22.0 | 14.5 | 1200 | 13000 | |
| 0.3 | 0.4 | 22.0 | 14.5 | 1200 | 13500vv | |
| Product name | Plain weave 09502 polyester conveyor mesh belt for garlic drying |
| Material | 100% polyester |
| Color | White |
| Usage | Drying |
| Size | Make as require |
| Package | wooden box |
Polyester mesh conveyor belt function:
1 acid and alkaline, abrasion resistance, high temperature resistance, long -term service life, is a woven net dry blanket, canvas, and several times.
2 Smooth surface, stretching strength, and good permeability. High -pass thermal efficiency for users to save energy.
3 Installation, easy to use, no stain interface, the intensity can reach 100 % normal mesh belt.
Polyester mesh conveyor belt application :
Washing, rinse and/or dry fruits, vegetables and flower bulbs;
Dried herbal medicine;
Drainage and washing fish
Hedu;
Cooling products;
Filter and sieve;
Washing industry cleaning in the waste recycling industry;
Drainage process.
Dry garlic, etc.
