Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyester Dryer Screen Mesh Belt | Color: | Red And White |
|---|---|---|---|
| Width: | 1-4meters | Length: | 1-100meters |
| Material: | 100%polyester | Usage: | Produce The Non-woven Fabric |
| Type: | 4106 | Feature: | Easy Clean, Long Service Time |
| Key Words: | Press Filter Mesh Belt | ||
| High Light: | dense weave polyester mesh belt,dry cultural paper polyester mesh belt,dense weave polyester dryer screen |
||

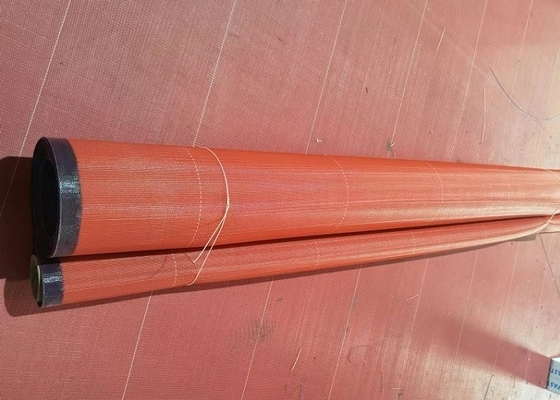

Polyester Woven Dryer Fabric Mesh Conveyor Belt For Dry Cultural Paper And Non-Woven Fabric
Introduction:
Polyester woven dry nets can be divided into one and a half layer, double-layer , flat wire, double flat wire and special material dryer fabric according to the types.
3-shed, 4-shed series one and a half polyester woven fabric is suitable for drying cultural paper, printing paper, wrapping paper, etc.
24503/22503 is suitable for multi-cylinder paper making machines, used in the first 3 groups of dryers, producing paper which weight less than 70 grams.
24504/22504/20654/4106 is used in multi-cylinder paper making machines. Due to its high air permeability, it is generally used in the second half part of the paper machine to produce the paper which weight more than 70 grams of paper.
4106-2/18688/16904 flat wire dryer, generally used in multi-cylinder paper machines, the first 3 groups of dryers to produce high-grade paper.
Main Features
1. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
2. High pressure double crank to control the die opening and closing.
3. Running in a high automatization and intellectualization,no pollution
4. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
| Product Name | Non-woven fabric dryer belt polyester dryer screen |
| Material | 100% Polyamide thread |
| Technique | dense weave |
| width | 30cm,40cm,60cm,1m or customized |
| Seam | spiral ring,pin seam and endless seam |
| Edge | Ddges sealed by glue;heat resistant cloth |
| Working temperture | -70 ℃ to 180 ℃ |
| HP value | 2 to 8 |
Specification:
|
Type |
Wire Diameter mm |
Density /cm |
Weight Kg/m2 |
Thickness Mm |
CFM 200Pa |
||
|
Warp |
Weft |
Warp |
Weft |
||||
| 22503 | 0.50 | 0.50 | 24 | 12 | 1.06 | 2.0 | 500 |
| 24503 | 0.50 | 0.50 | 25 | 12 | 1.10 | 2.0 | 438 |
| 22504 | 0.50 | 0.50 | 24 | 12 | 1.26 | 2.1 | 750 |
| 24504 | 0.50 | 0.50 | 26 | 12 | 1.3 | 2.1 | 680 |
|
4106 |
0.50 |
0.50 |
23 |
12.6 |
1.2 |
1.75 |
425 |
|
4106-1 |
0.5 |
0.3 |
22.8 |
|
1.3 |
1.8 |
500 |
| 0.7 | |||||||
| 4106-2 | 0.35*0.68 | 0.50 | 19.6 | 15.7 | 1.10 | 1.62 | 345 |
| 15505 | 0.25*0.40 | 0.50 | 17 | 13.5 | 0.75 | 0.83 | 406 |
| 20654 | 0.33*0.52 | 0.65 | 22 | 7.5 | 1.02 | 1.35 | 625 |
| 18688 | 0.30*0.58 | 0.35/0.68 | 20 | 18.5 | 1.2 | 1.40 | 100 |
| 16904 | 0.29*1.06 | 0.90/0.98 | 15.2 | 8.6 | 1.33 | 1.54 | 120 |
