Product Details:
Payment & Shipping Terms:
|
| Name: | Polyester Dryer Screen | Color: | Red And White |
|---|---|---|---|
| Width: | 1-4 Meters | Length: | 1-100meters |
| Material: | 100%polyester | Usage: | Produce The Non-woven Fabric |
| Type: | 4106 | ||
| High Light: | paper making machine polyester mesh belt,4 meters width polyester mesh belt,paper making machine polyester dryer screen |
||

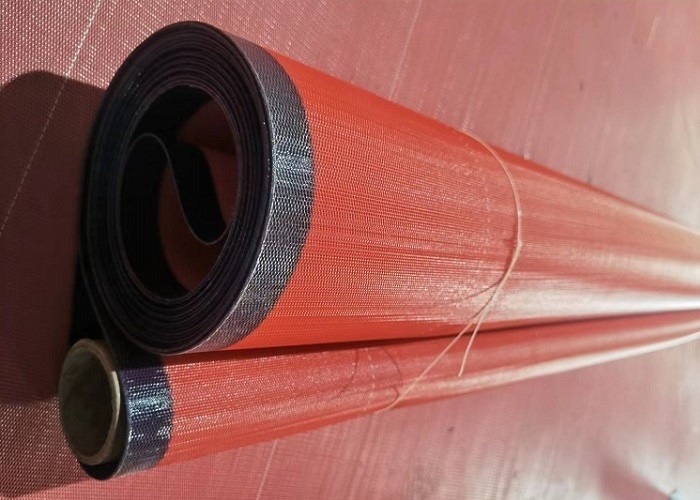

Dryer Screen Dryer Mesh Belt For Paper Making Machine Parts Sldf Dryer Screen
Introduction:
Polyester woven dry nets can be divided into one and a half layer, double-layer , flat wire, double flat wire and special material dryer fabric according to the types.
3-shed, 4-shed series one and a half polyester woven fabric is suitable for drying cultural paper, printing paper, wrapping paper, etc.
Flat wire, double flat wire polyester woven dryer fabric are generally suitable for the front drying cylinders of the dryer parts, and all high-quality papers can be used for.
| Product Name | Non-woven fabric dryer belt polyester dryer screen |
| Material | 100% Polyamide thread |
| Technique | dense weave |
| width | 30cm,40cm,60cm,1m or customized |
| Seam | spiral ring,pin seam and endless seam |
| Edge | Ddges sealed by glue;heat resistant cloth |
| Working temperture | -70 ℃ to 180 ℃ |
| HP value | 2 to 8 |
Specification:
|
Type |
Wire Diameter mm |
Density /cm |
Weight Kg/m2 |
Thickness Mm |
CFM 200Pa |
||
|
Warp |
Weft |
Warp |
Weft |
||||
| 22503 | 0.50 | 0.50 | 24 | 12 | 1.06 | 2.0 | 500 |
| 24503 | 0.50 | 0.50 | 25 | 12 | 1.10 | 2.0 | 438 |
| 22504 | 0.50 | 0.50 | 24 | 12 | 1.26 | 2.1 | 750 |
| 24504 | 0.50 | 0.50 | 26 | 12 | 1.3 | 2.1 | 680 |
|
4106 |
0.50 |
0.50 |
23 |
12.6 |
1.2 |
1.75 |
425 |
|
4106-1 |
0.5 |
0.3 |
22.8 |
|
1.3 |
1.8 |
500 |
| 0.7 | |||||||
| 4106-2 | 0.35*0.68 | 0.50 | 19.6 | 15.7 | 1.10 | 1.62 | 345 |
| 15505 | 0.25*0.40 | 0.50 | 17 | 13.5 | 0.75 | 0.83 | 406 |
| 20654 | 0.33*0.52 | 0.65 | 22 | 7.5 | 1.02 | 1.35 | 625 |
| 18688 | 0.30*0.58 | 0.35/0.68 | 20 | 18.5 | 1.2 | 1.40 | 100 |
| 16904 | 0.29*1.06 | 0.90/0.98 | 15.2 | 8.6 | 1.33 | 1.54 | 120 |
