Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching

China Hebei Reking Wire Mesh Co.,Ltd certification
China Hebei Reking Wire Mesh Co.,Ltd certification
I alreay install the flat flex conveyor belt and works well. Good company with nice service and high quality and high reputation

—— Mervyn Roe

Chain Mesh Conveyor Belt quality is ok. One of our reliable supplier , goods are delivered in time and nice package.

—— Dina Chek

Perfect Flat Wire Conveyor Belt we have purchased, low cost and good service.

—— Bahram Vand

I'm Online Chat Now

Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching

Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching
Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching

Large Image :  Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Eye Flex Conveyor Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Features: Large Open Areas Product Name: 304 316 Stainless Steel Eye Flex Conveyor Belts For Blanching
Keywords: Eye Flex Conveyor Belt Usage: Blanching
Material: 304 316 Stainless Steel Width: 50cm
Length: 10m Package: Plastic Film And Wooden Box
High Light:

304 ss wire mesh conveyor belt

,

blanching ss wire mesh conveyor belt

,

316 ss eyelink belt

304 316 stainless steel Eye Flex conveyor belts for Blanching





Eye Flex Conveyor Belt Specification

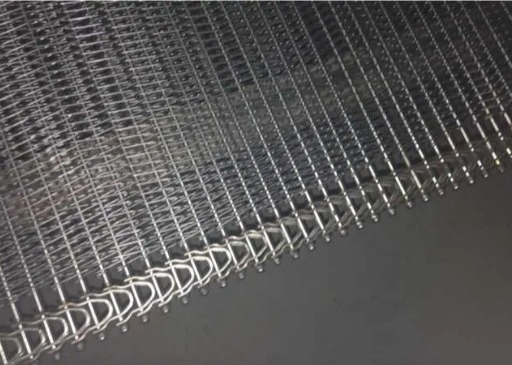

Eye flex Conveyor Belt is also named Wire Link Conveyor Belts, Wire Loop Belt. Eye link belts are produced of stainless steel or other alloys. They consist of a series of eye links or eye link modules. Joined with cross rods they form a flat, simple surface, which is extremely stable and durable. The qualities of this versatile conveyor belt form a combination of advantages that make it particularly suitable for the most demanding applications in the food, chemical, pharmaceutical and packaging industries.



Eye Flex Conveyor Belt Datas



Product Name 304 316 stainless steel eye flex conveyor belts
Certificate SGS
Technique Eye Flex Conveyor Belts
Material 201,304,316L,310S,410 etc
Specification

· Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

· Rod diameter: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.

· Wire diameter: 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.



· Spiral pitch: 2.4 mm to 100 mm.

· Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.

· Belt width: 200 mm to 6,000 mm.

Application Drying,Cooling,Freezing,Pasteurizing,Blanching,Baking and Washing machine
Size Max width can reach to 4000mm , belt length can be customized as your machine.
Other services

Special requirements can be customized



Eye Flex Conveyor Belt Advantages



Eye flex conveyor belts have a very flat mesh surface, which guarantees that your products stay flat and conststent throughout the production and packaging process. This means that your product will be more uniform and that product marking will be brought down to a minimum. Moreover, the single level surface ensures that no particles are entrapped between layers.



Eye Flex Conveyor Belt Usage



1   Frozen equipment

2   Dewatering equipment

3   Washing machine

4   Filtering equipment

5   Packaging equipment



Eye Flex Conveyor Belt Drawing



Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching 0

Eye Flex Conveyor Belt Quality Control



Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching 1Eye Flex Conveyor 304 316 Ss Wire Mesh Conveyor Belt For Blanching 2
