Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyester Paper Making Forming Fabric | Material: | 100% Polyetser |
|---|---|---|---|
| Advantage: | Long Service Time | Color: | White Blue Green |
| Factory: | Factory | Keyword: | Wire Mesh For Paper Making |
| High Light: | polyester paper machine fabric,endless paper machine fabric,polyester wire mesh for paper making |
||

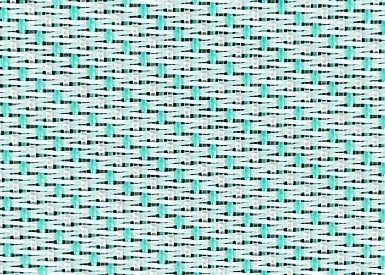

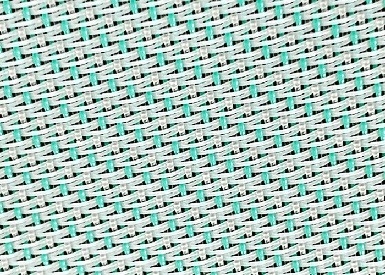

Polyetser paper machine fabric paper making mesh forming mehs fabric dryer mesh belt
1. Introduction
| Product name | polyester dryer mesh paper making forming fabric |
| Color | blue white red green |
| Size | Customzied |
| Material | 100% polyester |
| Edge type | glued edge 3-4cm |
| seam type | endless type |
| Type of the mesh belt | 1.5 layers 2layers 2.5 layers 3 layers |
| Technical | woven wire mesh |
2.Datesheet
| Polyester Dryer Mesh Papermaking Forming Fabric | |||||||
| Weaving Types | Model | Thread Dia.(mm) | Density(No.s/cm) | Srength (N/cm) |
Air Permeability (m3/m2h) |
||
| Warp | Weft | Warp | Weft | ||||
| 3-shed | 22503 | 0.5 | 0.5 | 24 | 12 | 2000 | 8000 |
| 22453 | 0.45 | 0.45 | 24 | 13 | 2000 | 8500 | |
| 24503 | 0.5 | 0.5 | 25 | 12 | 2000 | 7000 | |
| 24453 | 0.45 | 0.45 | 25 | 13 | 2000 | 6700 | |
| 4-shed | 20504 | 0.5 | 0.5 | 22 | 12 | 2000 | 15000 |
| 22504 | 0.5 | 0.5 | 24 | 12 | 2000 | 12000 | |
| 24504 | 0.5 | 0.5 | 26 | 12 | 2100 | 11000 | |
| 18504 | 0.5 | 0.5 | 20 | 11 | 1800 | 8000 | |
| round wire fabric | 4106 | 0.5 | 0.7 | 22.8 | 12.4 | 2200 | 6800 |
| 0.3 | |||||||
| Flat wire fabric | 4106-1 | 0.58 | 0.35 | 21 | 15 | 2000 | 2500 |
| 0.37 | 0.68 | ||||||
| 4106-2 | 0.58 | 0.35 | 21 | 14 | 2000 | 3000 | |
| 0.37 | 0.68 | ||||||
| 4106-3 | 0.58 | 0.35 | 21 | 13 | 2000 | 4000 | |
| 0.37 | 0.68 | ||||||
| 4106-4 | 0.58 | 0.35 | 21 | 13.5 | 2000 | 3500 | |
| 0.37 | 0.68 | ||||||
8-shed and 16-shed double and a half layer fabric is suitable for producing quality printing paper, such as offset printing paper, copperplate paper, newsprint and cigarette paper series (wrap paper and filter tips paper),acking paper which be requested with high quality, like kraft paper, cardboard , corrugated paper , also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.
Multi-shed three-layer fabric is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine.
