Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyester Paper Making Forming Fabric | Material: | 100% Polyetser |
|---|---|---|---|
| Advantage: | Long Service Time | Color: | White Blue Green |
| Factory: | Factory | Keyword: | Paper Machine Fabric |
| High Light: | woven paper making wire mesh,polyester forming paper making wire mesh,endless type paper machine fabric |
||

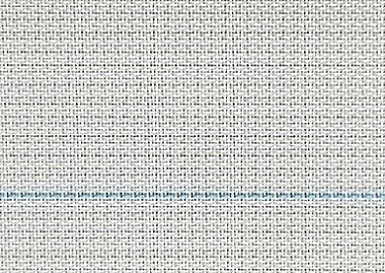

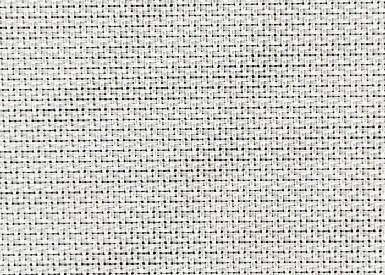

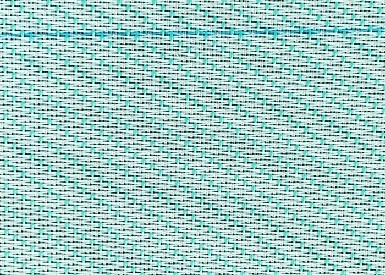

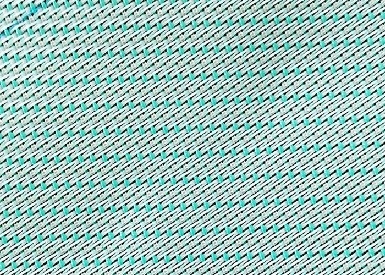

Polyetser Forming Fabric Mesh Belt Dryer Screen For Paper Making
1. Introduction
| Product name | polyester dryer mesh paper making forming fabric |
| Color | blue white red green |
| Size | Customzied |
| Material | 100% polyester |
| Edge type | glued edge 3-4cm |
| seam type | endless type |
| Type of the mesh belt | 1.5 layers 2layers 2.5 layers 3 layers |
| Technical | woven wire mesh |
2.Datesheet
| Polyester Dryer Mesh Papermaking Forming Fabric | |||||||
| Weaving Types | Model | Thread Dia.(mm) | Density(No.s/cm) | Srength (N/cm) |
Air Permeability (m3/m2h) |
||
| Warp | Weft | Warp | Weft | ||||
| 3-shed | 22503 | 0.5 | 0.5 | 24 | 12 | 2000 | 8000 |
| 22453 | 0.45 | 0.45 | 24 | 13 | 2000 | 8500 | |
| 24503 | 0.5 | 0.5 | 25 | 12 | 2000 | 7000 | |
| 24453 | 0.45 | 0.45 | 25 | 13 | 2000 | 6700 | |
| 4-shed | 20504 | 0.5 | 0.5 | 22 | 12 | 2000 | 15000 |
| 22504 | 0.5 | 0.5 | 24 | 12 | 2000 | 12000 | |
| 24504 | 0.5 | 0.5 | 26 | 12 | 2100 | 11000 | |
| 18504 | 0.5 | 0.5 | 20 | 11 | 1800 | 8000 | |
| round wire fabric | 4106 | 0.5 | 0.7 | 22.8 | 12.4 | 2200 | 6800 |
| 0.3 | |||||||
| Flat wire fabric | 4106-1 | 0.58 | 0.35 | 21 | 15 | 2000 | 2500 |
| 0.37 | 0.68 | ||||||
| 4106-2 | 0.58 | 0.35 | 21 | 14 | 2000 | 3000 | |
| 0.37 | 0.68 | ||||||
| 4106-3 | 0.58 | 0.35 | 21 | 13 | 2000 | 4000 | |
| 0.37 | 0.68 | ||||||
| 4106-4 | 0.58 | 0.35 | 21 | 13.5 | 2000 | 3500 | |
| 0.37 | 0.68 | ||||||
Paper making polyester forming wire can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type, etc.
Paper making polyester forming wire can be divided into single layer fabric, double layer fabric, two-and a half layer fabric and three-layer fabric according to the category.
4-shed and 5-shed series single layer fabric is standard type of polyester forming fabric in paper making, mainly used for producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint and so on. Suitable for common fourdrinier paper machine.
