Product Details:
Payment & Shipping Terms:
|
| Color: | Blue White | Material: | 100% Polyester |
|---|---|---|---|
| Hole Size: | 0.5mm 1mm 2mm 3mm | Width: | 20cm-420cm |
| Usgae: | Paper Making, Suger Industry, Friut Drying | Features: | Easy Clean |
| High Light: | 2mm hole polyester mesh conveyor belt,plain weave polyester mesh conveyor belt,4mm hole polyester mesh belt |
||

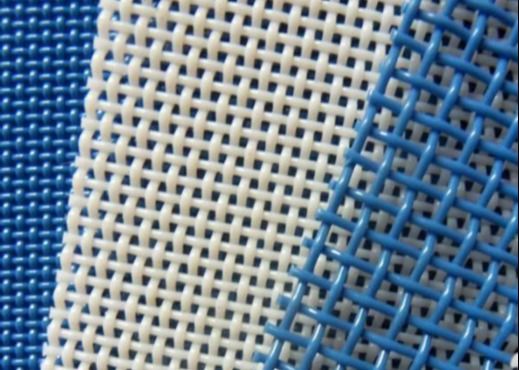

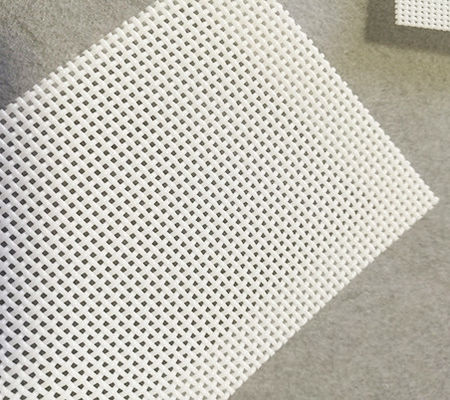

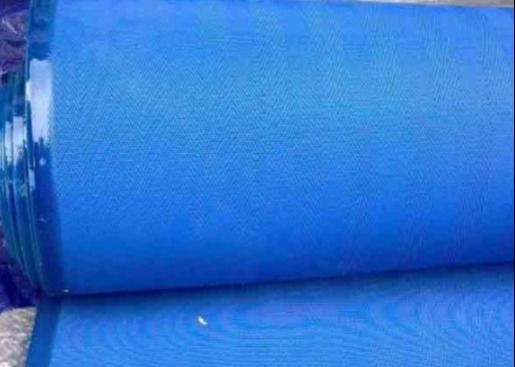

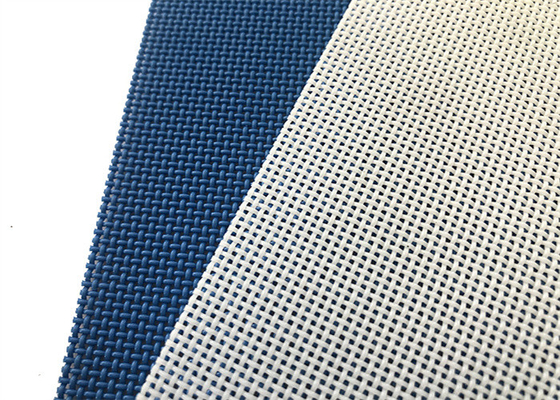

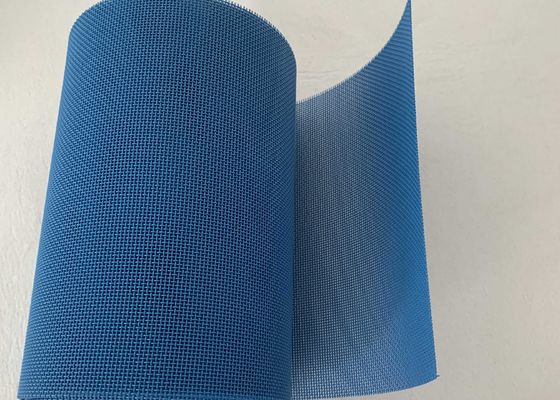

White Blue 2mm 4mm Hole Size Polyester Plain Weave Mesh Dryer Screen Mesh Liner Screen Conveyor Belts Cloth Fabric
1.Introduction of the polyester square mesh screen
Polyester square mesh screen is made from high viscosity polyester monofilament yarn, and weave 1:1 on the machine to get a uniform and defined mesh opening, which makes the polyester mesh belt in high filtration ability.
Based on the weaving distance, there is a wide range of the aperture size to meet the various application respectively
The hole size can be 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1mm, 2mm 3mm
2.Connection of the polyester mesh belt
1) Endless self-connection
2) Metallic clipper
3) Integrated spirals
About the edge of the mesh belt, there will be a 1-3cm width resin coated side to ensure the stable of the mesh belt.
3. Date sheet
|
Linear Screen Cloths
|
|||||||
|
Weaving Type
|
Model
|
Thread Diameter
(mm)
|
Density(No.s/cm)
|
Srength (N/cm)
|
Air Permeability (m³/m²h)
|
||
|
Warp
|
Weft
|
Warp
|
Weft
|
||||
|
2-shed plain weaving fabric
|
05802
|
0.75
|
0.8
|
4.7-5
|
4.8-5
|
940
|
>20000
|
|
05102
|
1.0
|
1.0
|
4.7-5.2
|
4.3-5
|
1600
|
>15000
|
|
|
06702
|
0.7
|
0.7
|
8
|
7
|
>=1600
|
11000
|
|
|
07102
|
0.7
|
1.0
|
6.6-7
|
4.3-4.6
|
1100
|
>15000
|
|
|
08552
|
0.55
|
0.55
|
7.5-8
|
8.5-9
|
850
|
850-6500
|
|
|
09452
|
0.45
|
0.45
|
10
|
8.6
|
1600
|
16000
|
|
|
09502
|
0.5
|
0.5
|
8.5-9
|
10-10.5
|
750
|
>10000
|
|
|
12502
|
0.5
|
0.5
|
13.5
|
8.5
|
1800
|
6500
|
|
|
3-shed plain weaving fabric
|
08603
|
0.5
|
0.6
|
10
|
9
|
1600
|
14000
|
|
08903
|
0.9
|
0.9
|
7.8-8
|
5-5.5
|
2100
|
7500-8500
|
|
|
07803
|
0.7
|
0.8
|
8
|
8
|
1600
|
10000
|
|
|
20353
|
0.3
|
0.35
|
22
|
14.5
|
1200
|
13000
|
|
|
20403
|
0.3
|
0.4
|
22
|
14.5
|
1200
|
13500
|
|
4. Appication pictures
