Name: | Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt | Color:: | White, Blue And Red |
---|---|---|---|
Size:: | 0.1-30m | Application:: | Paper Mill Industry |
Advantage:: | High Wear Resistance | Packing:: | Simple Packing |
Material: | 100% Polyester | Proper Temperature: | +150°C To -75°C |
High Light: | high tension polyester mesh belt,paper mill industry polyester mesh belt,high tension polyester mesh conveyor belt |

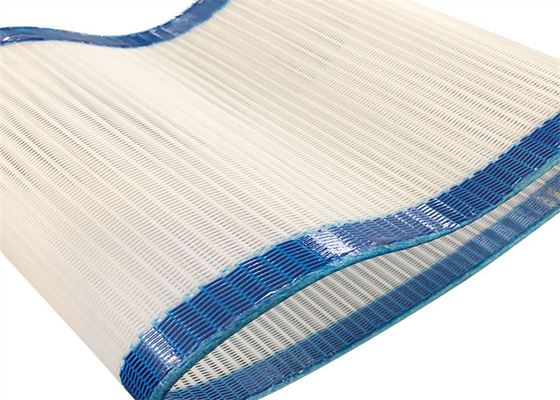

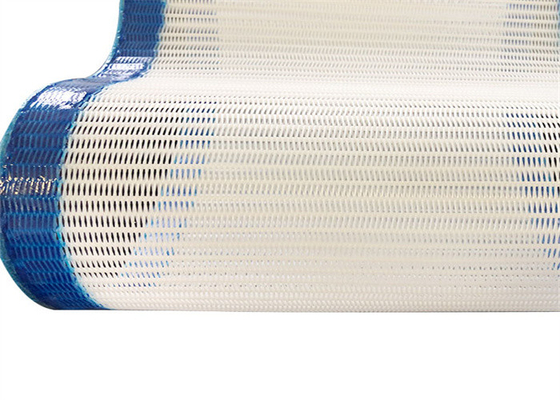

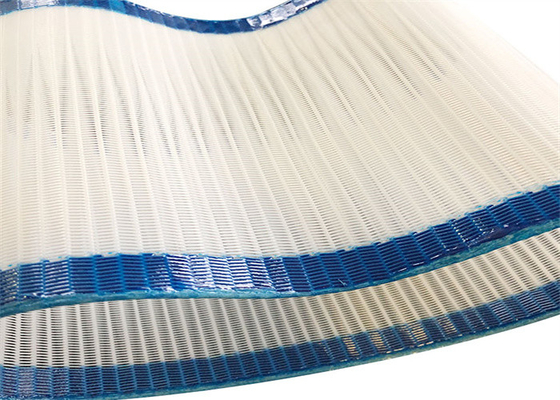

Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt
Polyester Mesh Belt Introduction
Polyester linear screen cloths are mainly the 2-shed and 3-shed polyester plain woven fabric
which widely used in special lines,such as mining sieving,mineralseparation,goldbenefication
paper pulps making,sulplate pulp packing and cardboard pulp,fiberboard plants as well as
tailings disposal,colliery food and medicine as filter belt
Polyester spiral press filter belt specification:
Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
(mm) | |||||||
Warp | Weft | Warp | Weft | ||||
2-shed plain weaving | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
05102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
06702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
07102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 |
Polyester Mesh Belt Data Sheet
Product Name | Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt |
Loop Size | Small Medium Large Loop |
Material | 100% Polyester |
Applicable Industries | Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry |
Color | Blue , white and Red |
Certificate | ISO9001 |
Type |
Polyester Dryer Belt Polyester Sprial Press Filter Belt |
Packaging | Plywood Case and woven mesh |
Polyester Mesh Belt Advantage
1 Flat surface, not easily cracked
