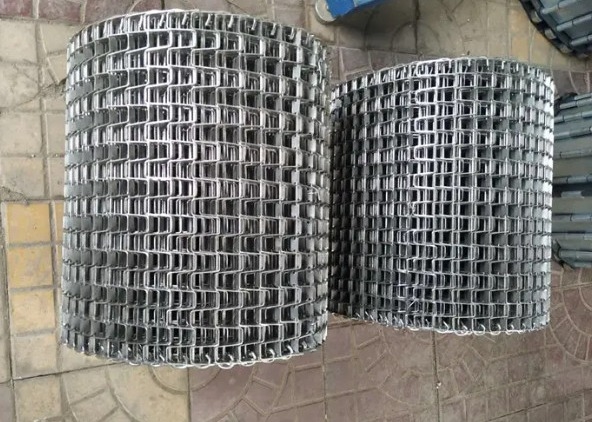

Honeycomb Ss Wire Mesh Belt For Soil Treatment Machine

Honeycomb Ss Wire Mesh Belt For Soil Treatment Machine
Honeycomb Ss Wire Mesh Belt For Soil Treatment Machine

Large Image :  Honeycomb Ss Wire Mesh Belt For Soil Treatment Machine

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Honeycomb Conveyor Wire Mesh Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Keywords: Honeycomb Conveyor Wire Mesh Belt Product Name: Stainless Steel Honeycomb Conveyor Wire Mesh Belt For Soil Treatment Machine
Material: Stainless Steel Main Features: Large Open Area
Application: Soil Treatment Machine Package: Plywood Box
High Light:

honeycomb ss wire mesh belt

,

soil treatment ss wire mesh belt

,

soil treatment conveyor wire mesh belt

Stainless Steel Honeycomb Conveyor Wire Mesh Belt For Soil Treatment Machine





Introduction of Honeycomb Conveyor Wire Mesh Belt



Honeycomb conveyor wire mesh belt offers a smooth passing on surface and a most extreme open region with the expectation of complimentary wind stream or water seepage. They are anything but difficult to clean and are amazingly sterile, particularly when produced with top notch secured edges. Secured edge treatment of these Honeycomb Flat Strip Conveyor Belt brings about some of extra client benefits including keeping the shipping stuff from dropping the transport line or from holding by the wires.



Data Sheet of Honeycomb Conveyor Wire Mesh Belt



    Item : Honeycomb Conveyor Wire Mesh Belt

    Material : carbon steel, SS 201, SS 304, SS 316.

    Spiral pitch : 12.7 mm to 40 mm.

    Rod pitch : 12.7 mm, 25.4 mm, 38.1 mm, 50.8 mm.

    Rod diameter : 3 mm, 4 mm, 5 mm, 6 mm, 8 mm.

    Belt width : 200 mm to 4000 mm.

    Open size : 1" × 1", 1/2" × 1", 1/2" × 1/2".

    Belt speed : from less than 1 m/min to 25 m/min.



Item

Size(mm) Sheet thickness(mm) sheet width(mm) Material
Flat wire conveyor belt 25.4*12.7 1.2 9.5 carbon steel
  25.4*25.4 1.2 9.5 stainless steel
  27.2*18 1.5 12 galvanized steel
  27.2*27.2 1.5 12
  38.1*38.1 1.5-2.0 12
  38.1*19 1.5-2.0 12
  50.8*25.4 2.0-2.5 15
  50.8*50.8 2.0-2.5 15



Drawing of Honeycomb Conveyor Wire Mesh Belt



Please supply these detail size that show in drawing, so that i can give you offer.

If do not know these size, you can tell me the usage and i can suggest suitable belt for you.

Honeycomb Ss Wire Mesh Belt For Soil Treatment Machine 0
