Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001:2000,SGS,FDA,MSDS | Brand Name: | R&K |
|---|---|---|---|
| Application: | Printing | Mesh Count: | 140T/355 Mesh/inch |
| Thread Diameter: | 30 Micron | Weave Style: | Plain Weave |
| Color: | White/ Yellow | Width: | 1 Meter /1.25 Meter Etc |
| High Light: | high tension screen printing mesh,30 micron screen printing mesh,monofilament t shirt screen printing mesh |
||

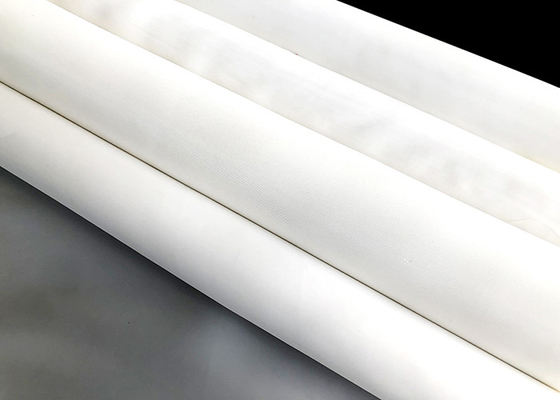

High Tension T-Shirt Monofilament Screen Printing Mesh For T-shirt Printing
Description For Monofilament Screen Printing Mesh:
Silk screen printing mesh are widely used in ceramic,glass,electonic components,textile,Garment,CD/DVD Pinting industry,like the life metal advertisement,business card,and the imgae..
Reking silk screen printing mesh be setting within 180-200 centigrate,we can control our temperature in filexibility. if you have any problem,you can contact us freely.the satable of the mesh depends on the temperature when setting up.
| Brand name | R&K |
| Certification | ISO9001:2000,SGS,FDA,MSDS |
| Application | For T-shirt Printing |
| Thread diameter | 30 micron |
| Weave style | Plain weave |
Features For Monofilament Screen Printing Mesh:
1) Faster tensioning withour damage to threads;
2) Faster tension stabilization;
3) High elasticity;
4) Less tension loss during the stretching process;
5) High acid resistant,corrosion resistant;
6) Faster turnaround time from the screen room to the pressroom;
7) Improved registration due to stable tension;
8) Faster printing speeds.
Specification For Monofilament Screen Printing Mesh:
| Mesh Count Diameter (Mesh/inch μm) |
Mesh Count (Mesh /Inch) |
Weave | Aperture (μm) |
Thread Diameter (μm) |
Opening (%) |
Thickness(μm) | Thickness Tollerance (+/- μm) |
Theoretical lnk(cm3/m2) |
Weight (g/m2) |
| 13-150PW(SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 |
| 21-80pw(S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 |
| 21-150PW(SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 |
| 24-100PW(T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
| 28-140PW(SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 |
| 32-55PW(S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 |
| 32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
| 32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
| 36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
| 39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
| 40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
| 43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
| 47-45PW(S) | 120 | 1:1 | 166 | 45*2 | 61 | 80 | 6 | 42 | 40 |
| 47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
| 48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
| 53-45PW(S) | 135 | 1:1 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 |
| 53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
| 54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
| 54-70(PW)HD | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 |
| 61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
| 64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
| 64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
| 68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
| 68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
Application For Monofilament Screen Printing Mesh:
Widely used in screen printing industry, filtering, textile printing and dyeing, printing plate, electronic printing, ceramics, glass printing and other industries.
Silk screen printing mesh can transfer thick ink deposits and great speical effect to make it to be optimal process to print high quality commercial farments,T-shirt etc.
Silk screen printing mesh can print the challenging intense color and ornate decor on glass and PCB etc.
