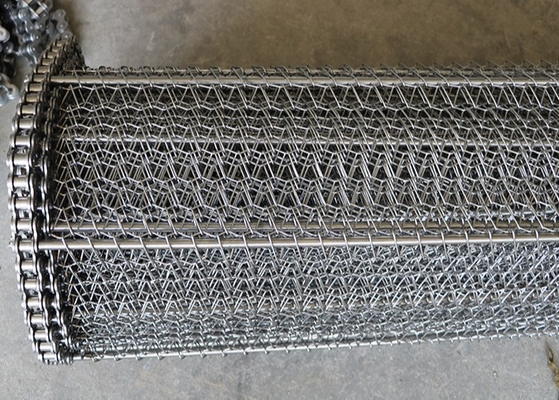

AISI304 Spiral Chain Link Conveyor Belt For Dry Nuts Roasting Machine
Spiral Chain Link Conveyor Belt Description
The spiral chain link conveyor belt is also called the trapezoidal mesh belt, this belt is usually gear transmission belt, has the advantages of good air permeability, tensile force uniform, fine workmanship, this belt has good stability, flexible rolling, high temperature resistance, pressure resistance, corrosion resistance, long service life.
Spiral chain link conveyor belt is driven with a cross rod which connects the chain strands by either passing though or under the mesh fabric. The density of the fabric is chosen according to the size of product conveyed on the belt.
Spiral chain link conveyor belt is driven by sprockets, so the bending phenomenon is not occur. Various chains could be available after adjust the belt pitch. And it is easy to attach the side guard and stopper in combination with chain and cross rod.
Spiral Chain Link Conveyor Belt Data Sheet
| Item |
Pitch |
Belt width |
Rod diameter |
Wire diameter |
U-shaped chain link height |
Width of U-shaped chain link |
| Normal chain link type |
3/4" |
2.2 |
5mm |
2mm |
11mm |
28mm |
| Normal chain link type |
1" |
1.7 to 2.2 |
5mm |
2mm |
11mm |
29mm |
| Heavy duty chain link type |
1" |
2.2 |
5mm |
2mm |
11mm |
36mm |
| Heavy duty chain link with double reinforcing plate links |
1" |
1.7 to 2.2 |
5mm |
2mm |
11mm |
41mm |
| With middle chain links |
3/4" |
1.1 (inner) |
5mm |
2mm |
11mm |
28mm |
Spiral Chain Link Conveyor Belt Selling Points
1. Excellent strength to weight ratio but with maximum flexibility.
2. High temperature resistance, anti-corrosion and anti-rust, resistant to acid and alkaline.
3. Stable product conveying without slipping, griping and jamming, good air circulation.
4. Side board can be added to prevent products from falling down to the ground.
5. Complying with food safety standards such as FDA, GMP and others up your request.
6. Durable, low maintenance cost, quick and easy install and replacement.
Spiral Chain Link Conveyor Belt Usage
Spiral Mesh Conveyor Belt is widely used in glass industry, mesh belt furnace, decorating furnace mesh belt. Food processing industry, dehydrated vegetables , frozen food before processing , machine belt , chain mesh , powder metallurgy , metal heat treatment, hardening , sintering , brazing, baking and so on .
Spiral Mesh Conveyor Belt Drawing
Please give me the detail size we show on drawings, so that we can give you our best offer.
Spiral Chain Link Conveyor Belt Package
Spiral Chain Link Conveyor Belt Application
