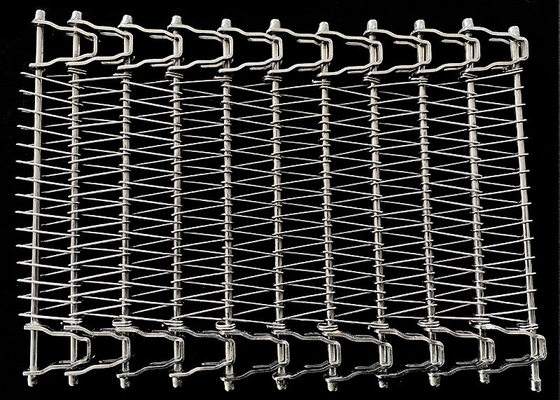

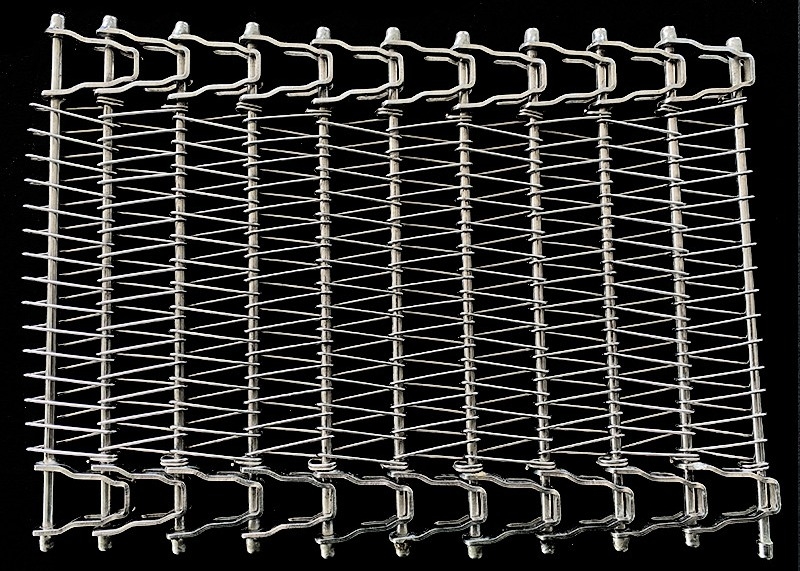

Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt

Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt
Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt

Large Image :  Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Spiral Mesh Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Belt Name: Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt Keywords: Spiral Mesh Belt
Pitch: 19.05-38.1mm Plate Thickness: 2-3mm
Wire Diameter: 1.2-2mm Belt Features: Food Grade
Package: Plywood Box Belt Material: 316 Stainless Steel
Belt Usage: Seafood Frozen Oven Production Time: 7-15 Days After Receiving Your Payment
High Light:

spiral wire mesh

,

spiral woven wire mesh belt

Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt





Spiral Mesh Belt Introduction



Spiral mesh belt is used more widely on more applications than any other woven wire mesh conveyor belt . Balanced weave conveyor belt offers a variety of choices. The mesh can be very open , or very tight .



Belt Name Food Grade 316 Stainless Steel Seafood Freezing Oven Spiral Mesh Belt
Material 304 316 316L Stainless Steel
Pitch 19.05-38.1mm
Plate thickness 2-3mm
Wire Diameter 1.2-2mm
Rod Diameter 5-7mm
Width  300mm-2m
Length 3m



Spiral Mesh Belt Advantages

  • the sprocket drive ensures postive and stable running
  • turing rate :1.7-2.2
  • easy washing is ensured .
  • Because of large open area , high air permeability and dehydration capacity are ensured .
  • 120-1500mm width , 5mm rod , 1.5mm wire .pitch 25.4mm,27.43,31.75mm
  • chain is driven by sprocket, meandering does not occur.
  • various types of chain can be applied by adjusting belt pitch.

Spiral Mesh Belt Drawing



Please supply these detail size, so that we can give you accurate offer.



Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt 0



Spiral Mesh Belt Application



  • Spiral mesh belt is  also known as wide spiral link belts, are constructed of round or flat spiral wires joined by crimped rods. Driven, tensioned and guided by a sprocket or a plain roller, balanced weave conveyor belt is an economical choice to provide smooth and stable movement for medium load applications and various others as shown below:
  • Food processing industrial such as draining , cooling , baking and washing , etc.
  • Glass and ceramic industry
  • Metalworking and hardening
  • Chemical industry such as conveying rubber and plastic products.
  • Serving as screen, guard and mesh panels
  • Decoration
  • Acting as heat treatment belt or pasteurizing belt, etc.

Seafood Freezing Oven Food Grade 316 Stainless Steel Spiral Mesh Belt 1
