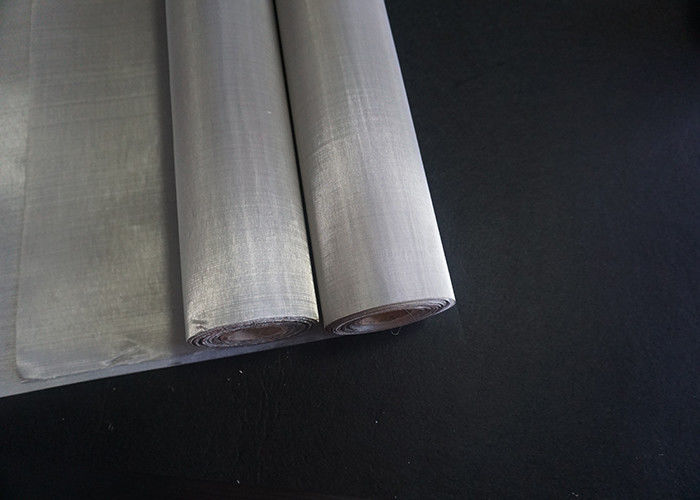

Plain Weave Stainless Steel Conveyor Wire Mesh Belt For Chemical Industry

Plain Weave Stainless Steel Conveyor Wire Mesh Belt For Chemical Industry
Plain Weave Stainless Steel Conveyor Wire Mesh Belt For Chemical Industry

Large Image :  Plain Weave Stainless Steel Conveyor Wire Mesh Belt For Chemical Industry

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Conveyor wire mesh belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Material: 304 / 316 Stainless Steel Width: 1m
Length: 30m Usage: Chemical Industry
Keywords: Conveyor Wire Mesh Belt Product Name: Plain Weave Stainless Steel Conveyor Wire Mesh Belt For Chemical Industry
High Light:

stainless steel wire conveyor belt

,

metal mesh belt

Plain Weave Stainless Steel Conveyor Wire Mesh Belt For Chemical Industry





Product description of Conveyor Wire Mesh Belt



Conveyor wire mesh belt are widely used in petroleum, chemical, environmental protection, mining, airspace, paper, electronics, metallurgy and other industries. Special sizes and specifications are available upon request.

Dutch woven stainless steel wire mesh: Dutch twill weave wire cloth provides higher strength than ordinary Dutch woven wire cloth. It has more wire wrapped in a given area than a Dutch plain weave. In general, Dutch twill woven wire mesh provides a finer mesh number and lower flow than other Dutch woven wire cloths, and can be made into filter particles having a diameter of 2 microns.



Conveyor wire mesh belt  material: woven stainless steel wire mesh (wire mesh) materials are divided into 304 type, 304L type, 316 type and 316 type. Type 304 is commonly referred to as "18-8" (18%) chromium, 8% nickel ), a basic stainless steel alloy, usually used for wire weaving. It can withstand outdoor exposure without rust and can withstand oxidation at temperatures up to 1400 degrees Fahrenheit.

Type 304 L is very similar to T-304 except that the carbon content is reduced for better weaving and secondary welding.

Type 316 is stabilized by the addition of 2% molybdate, which is an "18-8" alloy. It has better pitting resistance than other chrome-nickel stainless steels containing brine, sulfur-containing water or halogen salts such as chloride. A valuable property of T-316 is its high creep strength at high temperatures. Other mechanical properties and manufacturing characteristics are similar to T-304.



Weaving: plain weave stainless steel dense mesh (plain-dense), twill weave stainless steel dense mesh (twill-dense), bamboo weave stainless steel dense mesh, contrast weave stainless steel dense mesh (also called contrast mesh conveyor) ).

Craft: plain weave of the Netherlands: the weave of the weave is similar to the weaving of each line. The difference is that the warp filaments of the woven mesh are thicker than the weft filaments. The weft wire is closely closed to form a tapered or wedge-shaped opening.

Twill Dutch weave: This weave of wire cloth combines the Dutch-made and twill weave techniques described above. The thick warp yarns are interdigitated with a thinner weft. Each warp thread shuttles between the upper and lower sides of the weft. The weft wire is closely closed to form a tapered or wedge-shaped opening.

Dutch plain wire cloth is mainly used as a filter cloth. This woven wire mesh has a thick mesh and a line in the warp direction and a thin mesh and a line in the weft direction. The Dutch plain weave is an ideal filter cloth with a very compact, strong mesh and high strength.



Product parameters of Conveyor Wire Mesh Belt



Mesh count Warp*Weft Mesh opening Presssure drop-coefficient Tensile strength Porosity theor Weight Thickness
(mesh/inch) micron   N/cm N/cm % kg/m2 mm
720x150 26 420 220 325 51 0.65 0.17
630x130 27 500 200 455 49 0.8 0.2
600x100 53 150 210 410 56 0.74 0.21
290x75 59 210 390 650 52 1.36 0.36
170x40 121 70 615 815 58 1.81 0.55
175x50 124 120 430 885 54 2.03 0.56
30x30 137 95 815 1270 53 3.01 0.82
130x35 151 65 850 1050 58 2.5 0.75
94x16 314 25 3185 580 67 2.42 0.94
