Textile Printing Machine 4*4mm PTFE Coated Conveyor Belts

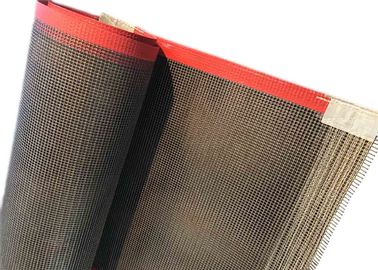

Large Image : Textile Printing Machine 4*4mm PTFE Coated Conveyor Belts

Product Details:

Place of Origin:	China
Brand Name:	Reking
Certification:	CE SGS
Model Number:	Conveyor Belts

Payment & Shipping Terms:

Minimum Order Quantity:	3 meters
Price:	Negotiable
Packaging Details:	Plywood box
Delivery Time:	Up to your quantity
Payment Terms:	T/T L/C Western Union Paypal
Supply Ability:	5000 meters per month

Contact Now

Detailed Product Description

Belt Hole:	4*4mm	Material:	Fiberglass
Belt Color:	Black Brown Red	Working Temperature:	-140 To 360 Celsius Degree
Application:	Textile Printing Drying	Package:	Platsic Film And Plywood Box
Keywords:	Conveyor Belts	Belt Name:	Textile Printing Machine 4*4mm PTFE Coated Conveyor Belts
Highlight:	ptfe mesh conveyor belt , coated belts

Textile Printing Machine 4*4mm PTFE Coated Conveyor Belts

Conveyor Belts Description

Conveyor Belts select fine fiberglass, Kevlar or Nomex as basic weaving material, coated with excellent PTFE() resin to make it into various of PTFE() mesh conveyor belt.

Conveyor Belts Selling Points

Big Working Temperature Range : for low temperature -70 ° C, high temperature 260 ° C, with weather resistance, anti-aging. After practical application, if placed continuously for 200 days at a high temperature of 250 °C, not only the strength will not become lower, but also the weight will not decrease; when placed at 350 ° C for 120 hours, the weight will only decrease by about 0.6%; at -180 ° C It retains its original softness at ultra-low temperatures.
Conveyor Belts non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
resistant to chemical corrosion, can withstand the corrosion of strong acid, alkali, aqua regia and various organic solvents.
The teflen conveyor belt has good dimensional stability (extension coefficient less than 5‰) and high strength. Has good mechanical properties.
anti-bending fatigue, can be used for smaller wheel diameter.
drug resistance, non-toxic. Almost resistant to all pharmaceutical items.
fire retardant.
Breathability---The air permeability of the conveyor belt, reducing the heat source cost and improving the drying efficiency.

Conveyor Belts Detail Size

Model	aperture	material	thickness	weight	Temperature resistance	Maximum width	tensile strength
W-O5J	1x 1mm	glassfiber	0.5mm	370g /m 2	-70 -260 ℃	4m	310/290 N/cm
W-07J	2x 2mm	glassfiber	0.7mm	450g /m 2	-70 -260 ℃	4m	350/310 N/cm
W-1J	4x 4mm	glassfiber	1.0mm	400g /m 2	-70 -260 ℃	4m	390/320 N/cm
W-2J	4x 4mm	glassfiber	1.0mm	450g /m 2	-70 -260 ℃	4m	390/320 N/cm
W-12KJ	4x 4mm	glassfiber	1.2mm	600g /m 2	-70 -260 ℃	4m	895/370 N/cm
W-3J	4x 4mm	glassfiber	1.0mm	500g /m 2	-70 -260 ℃	4m	395/370 N/cm
W-4J	4x 4mm	glassfiber	1.0mm	500g /m 2	-70 -260 ℃	4m	900/600 N/cm
W-5J	4x 4mm	glassfiber	1.0mm	550g /m 2	-70 -260 ℃	4m	395/370 N/cm
W-12J	10x 10mm	glassfiber	1.2mm	450g /m 2	-70 -260 ℃	4m	360/300 N/cm
NW-14J	0.5x 1mm	glassfiber	0.5mm	420g /m 2	-70 -260 ℃	4m	310/290 N/cm
W-09J	2x 2.5mm	glassfiber	0.9mm	600g /m 2	-70 -260 ℃	3m	390/320 N/cm

Conveyor Belts Application

Anti-adhesive lining, gasket, mask and conveyor belt; conveyor belt, adhesive tape, sealing tape, etc. used for various drying machines according to different thickness.
Plastic products welding, welding and welding cloth; plastic sheet, film, heat sealing sheeting tape.
Electrical high insulation: electrical insulation tape base, spacers, gaskets, liners. High frequency copper clad laminate.
Heat-resistant cladding layer; laminated substrate, insulation body dressing.

Conveyor Belts Production Line

Textile Printing Machine 4*4mm PTFE Coated Conveyor Belts 0
