Seafood Freezer 304 316 Stainless Steel Spiral Mesh Belt

Large Image : Seafood Freezer 304 316 Stainless Steel Spiral Mesh Belt

Product Details:

Place of Origin:	China
Brand Name:	Reking
Certification:	CE SGS
Model Number:	Spiral mesh belt

Payment & Shipping Terms:

Minimum Order Quantity:	3 meters
Price:	Negotiable
Packaging Details:	plywood box
Delivery Time:	up to your quantity
Payment Terms:	T/T L/C Western Union Paypal
Supply Ability:	5000 meters per month

Contact Now

Detailed Product Description

Keywords:	Spiral Mesh Belt	Wire Diameter:	1.2-2mm
Rod Pitch:	19.05-38.1mm	Rod Diameter:	5-7mm
Plate Thickness:	2-3mm	Belt Material:	304 316 316L Stainless Steel
Belt Usage:	Seafood Freezer	Belt Name:	Seafood Freezer 304 316 Stainless Steel Spiral Mesh Belt
Highlight:	spiral woven wire mesh belt , spiral conveyor belt

Seafood Freezer 304 316 Stainless Steel Spiral Mesh Belt

Spiral Mesh Belt Descripition

Spiral mesh belt consists of cross rods with overlaying alternating spiral coils . It is equipped with flexible u-shaped edge for side flexibility . This kind of mesh belt is especially designed for spiral or round conveyor as well as straight-running conveyor .
Spiral mesh belt offers a smooth continuous product flow running dependably year after year without damaging fragile and delicate products .
Spiral mesh belt Material : iron high caron steel 201 stainless steel 304 stainless steel 316 stainless steel 316l stainless steel
Spiral mesh belt advantages : Spiral mesh belt has the advantages of Close-structure structure and ideal for high tensile load . Suitable for radius system, spiral, curved or straight conveyors . Wide temperature range from -196°C to +275°C.
Spiral mesh belt types : Two types of spiral wire can be provided: round wire and flat wire .
Spial mesh belt edge treatment : Spiral mesh belt are available in four different edges including traditional fabricated and welded edge , U-shaped chain link edge, roller chain link edge with or without side plates .

Detail size of spiral mesh belt

Item	Spiral mesh belt
Material	SS201 , SS 304 , SS 316 . Iron and high carbon steel
Width	304.8 mm to 1376 mm.
Rod diameter	5 mm, 6 mm, 7 mm.
Flat wire spiral	cross 1.2 × 0.7 mm to 6 × 3 mm
Cross bar diameter	1.40 to 8 mm
Cross bar pitch	19.05 mm, 25.4 mm, 27.4 mm ,30 mm, 30.5 mm, 38.1 mm
Side guard height	24 mm, 26 mm, 38.1 mm
Link thickness	2 mm, 2.5 mm, 2.7 mm, 3.1 mm
Wire diameter	1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.7 mm, 1.8 mm
Speed	less than 1 m/min to about 20 m/min . (higher speed may affect the longevity of the belt)
Temperature range	-196 °C to +275 °C

Pictures of Spiral mesh belt

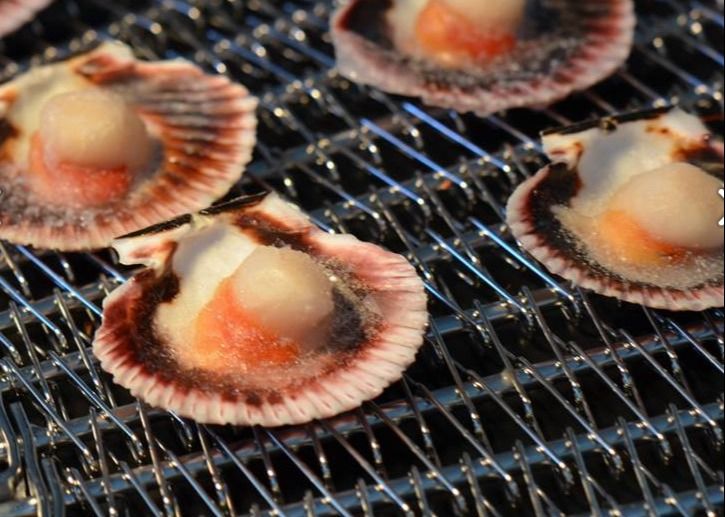

Seafood Freezer 304 316 Stainless Steel Spiral Mesh Belt 0

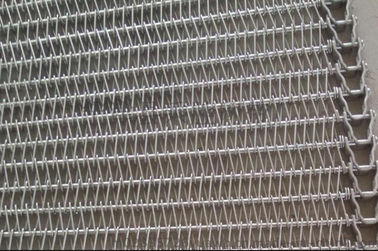

Seafood Freezer 304 316 Stainless Steel Spiral Mesh Belt 1
