Electric Production Oven 316L SS Conveyor Wire Mesh Belt

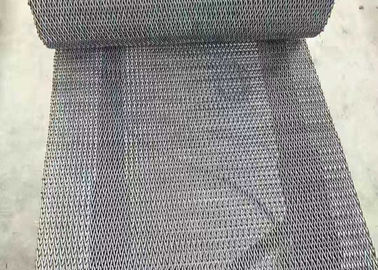

Large Image : Electric Production Oven 316L SS Conveyor Wire Mesh Belt

Product Details:

Place of Origin:	China
Brand Name:	Reking
Certification:	CE SGS
Model Number:	Conveyor Wire Mesh Belt

Payment & Shipping Terms:

Minimum Order Quantity:	3 meters
Price:	Negotiable
Packaging Details:	plywood box
Delivery Time:	up to your quantity
Payment Terms:	T/T L/C Western Union Paypal
Supply Ability:	5000 meters per month

Contact Now

Detailed Product Description

Belt Material:	316l Stainless Steel	Wire Diameter:	0.8-4mm
Spiral Pitch:	2.5-50mm	Rod Pitch:	7-60mm
Belt Benefits:	Flat Surface	Belt Package:	Plywood Box
Keywords:	Conveyor Wire Mesh Belt	Belt Name:	Electric Production Oven 316L SS Conveyor Wire Mesh Belt
Highlight:	acid resistant conveyor wire mesh belt , acid resistant wire mesh conveyor belt , 316l conveyor wire mesh belt

Electric Production Oven 316L SS Conveyor Wire Mesh Belt

Conveyor Wire Mesh Belt Introduction

Conveyor Wire Mesh belts can be welded or fabricated to form a stable straight or curved convey system. The cold butting and welds which connect the chain links and rods are welded toughly with minimum heats to ensure the structure of cross rods .
Conveyor wire mesh belt is also called diamond or chain link conveyor belt because its hole shape like diamond.
Conveyor wire mesh belt can insert cross rod and chains, so that the belt will be stability than before.

Conveyor Wire Mesh Belt Benefits

Good air permeability , because the belt has big hole.
Large temperature difference (can used in frozen machine and high temperature machine)
Food garde
Long service life
Easy clean , install and repair

Conveyor Wire Mesh Belt Data detail

Belt name	Conveyor Wire Mesh Belt
Belt material	carbon steel , 201 stainless steel , 304 stainless steel , 316 stainless steel , 316l stainless steel , 310 stainless steel , 430 stainless steel
Belt Rod Pitch	Common rod pitch : 7-60mm or can produce as the drawing you send
Belt Spiral Pitch	Common Spiral Pitch : 2.5-50mm or can produce as the drawing you send
Belt Wire Diameter	Common Wire Diameter : 0.8-40mm or can produce as the drawing you send
Width and length	can produce as the drawing you send

Conveyor Wire Mesh Belt Usage

Food cryogenic cooling and freezing.
Vegetable blanching.
Dough proofing.
Drying installations.
Product lifting conveyors.
Baking or pasteurizing systems.
Conveyor machines.

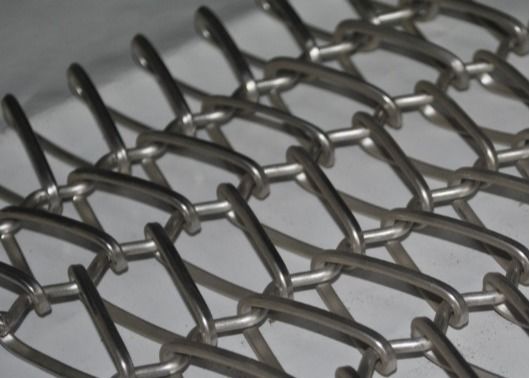

Conveyor Wire Mesh Belt Drawings

Electric Production Oven 316L SS Conveyor Wire Mesh Belt 0
