High Temperature Food Industry Chain Link Conveyor Belt Ss321

small.img.alt small.img.alt small.img.alt

Large Image :  High Temperature Food Industry Chain Link Conveyor Belt Ss321

Product Details:
Place of Origin: china
Brand Name: RK
Certification: iso/sgs
Model Number: custom
Payment & Shipping Terms:
Minimum Order Quantity: 3 square meters
Price: $ 10-50 / sq m
Packaging Details: wooden box
Delivery Time: 10work Day
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 10,000 square meters / 10 days
Detailed Product Description
Material: Stainless Steel Wire Application: Woven Wire Mesh
Weave Style: Plain Weave Technique: Perforated
Wire Diameter: According To Your Requirement Type: Weave Wire Mesh
High Light:

high temperature chain link conveyor belt


chain link conveyor belt ss321


food industry chain link conveyor belt

High temperature stainless steel Chain Mesh Conveyor Belt Belt Line Mesh Food Industry Metal Conveyor Mesh Belt



Chain Mesh Conveyor Belt Description :


Chain link conveyor belting consists of interwoven successive spiral wire, which looks like chain link fencing. This universal conveyor belt is the simplest wire belt but functional and economical in conveying light-duty applications. Owing to its large open area, chain link belt makes itself an ideal choice for drying, cooling and heating where energy efficiency is the most important.


Material Maximum Wire Operating Temperature
Carbon Steel 550
Galvanised Mild Steel 400
Chrome Molybdenum (3% Chrome) 700
304 Stainless Steel 750
321 Stainless Steel 750
316 Stainless Steel 800
316L Stainless Steel 800
314 Stainless Steel 1120
37/18 Nickel Chrome 1120
80/20 Nickel Chrome 1150
Inconel 600 1150
Inconel 601 1150



Chain Mesh Conveyor Belt List


Specification :
Material carbon steel, SUS 201 304 316
Wire diameter 1 to 3mm
Rod diameter 4 to 12 mm
Spiral wire pitch 3 to 20 mm
Chain pitch 19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Width 0.2m to 4m
Rod pitch 5 to 30 mm


Chain Mesh Conveyor Belt Categories:

1. Fast frozen machine,baking machine, plane conveyor, screw conveyor.
2. Cleaning,sterilization,drying ,cooking,cooling and so on for food machine.
3. Losing bottle annealing,roast flower etc for glass machine .
4. Eachi kinds of pipeline transport.
5. Metal process:powder metallurgy, heat treatment ,hardening, sintering, brazing, roasting, brightening, blacking, bearing, carburizing high-temperature.
6. Washing machine,winding machine,drying machine, etc.


Chain Mesh Conveyor Belt material :


High Carbon Steel, Galvanized Steel, 304 Stainless Steel, 314 Stainless Steel, 316 Stainless Steel, 316L, 317 Stainless Steel, 330 Stainless Steel, 430 Stainless Steel, 3519cb, 8020cb, Inconel 600, Inconel 601, Inconel 625, Manganese, 3% Chrome (specialty metals also available upon request.

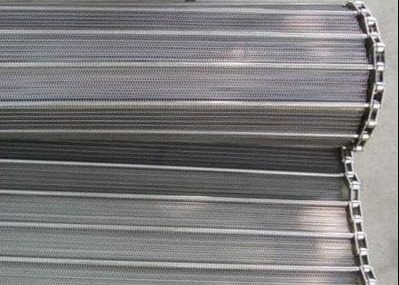

High Temperature Food Industry Chain Link Conveyor Belt Ss321 0

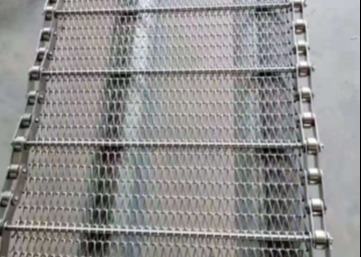

High Temperature Food Industry Chain Link Conveyor Belt Ss321 1
