Product Details:
Payment & Shipping Terms:
|
| Features: | Non-revealed Sludge | Name: | 2021 New Design White And Red Reusable Hand-Woven 100% Polyester Polyester Sludge Dewatering Belt For Fruit Squeeze |
|---|---|---|---|
| Color:: | White Blue And Black | Size:: | 0.1-30m Long |
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Durability: | Repeatable Application |
| High Light: | repeatable dewatering belt,repeatable sludge dewatering belt,0.1m dewatering belt |
||

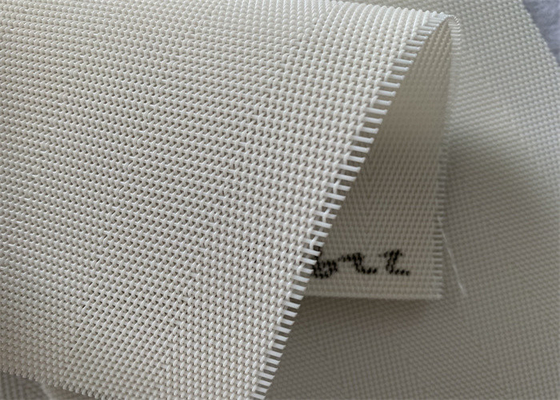

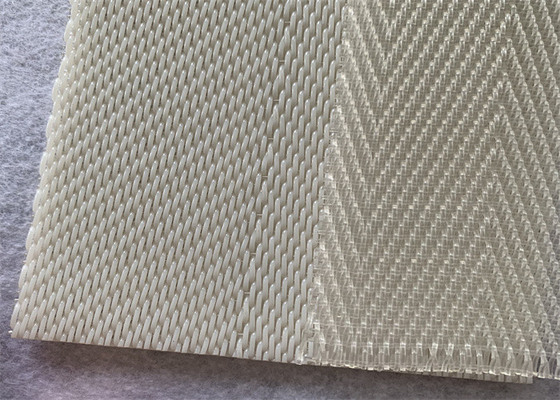

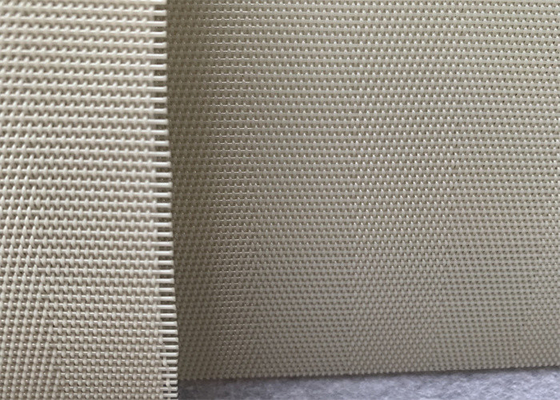

Blue Polyester Sludge Dewatering Belt Special Mine Smelting Tailings Treatment For Filter Press Industry
Polyester Sludge Dewatering Belt Product Introduction
| No |
Thread diameter |
Density (per/cm) |
Strength (N/cm) |
Water permeablility S/5L |
Weight Kg/m2 |
Thickness mm |
Gas permeability |
|||
| Warp | Weft | Warp | Weft | Surface | Jointing | |||||
| 2470 | 0.05 | 0.70 | 24 | 9 | 2000 | 900 | 56.4 | 1.23 | 1.90 | 6130 |
| 27708 | 0.05 | 0.70 | 28 | 8.5 | 2100 | 900 | 63 | 1.53 | 2.21 | 4120 |
| 22903 | 0.05 | 0.90 | 23 | 5.5 | 2000 | 900 | 48 | 1.40 | 1.90 | 6800 |
| 16903 | 0.70 | 0.90 | 17 | 4.5 | 2200 | 900 | 38.6 | 1.70 | 2.0 | 7920 |
| 121103 | 0.90 | 1.10 | 12.5 | 3.8 | 3600 | 900 | 32.4 | 1.60 | 2.60 | 8610 |
| 26808 | 0.05 | 0.80 | 27 | 8.5 | 2100 | 900 | 60.3 | 1.54 | 2.20 | 5120 |
Polyester Sludge Dewatering Belt Product Introduction Description
1Polyester Sludge dehydration mesh belt have the characteristics of good water permeability
2 air permeability and non-revealed sludge, acid-resisting and alkali-resisting
3 Because of their designing structure, the sludge can be peel off easily from the filter cake
4 so the screen are easily cleaned and have a long working time
5 Mainly matching with belt type filter press vacuum rubber belt filter and vacuum horizontal belt filter
Polyester Sludge Dewatering Belt Product Introduction Advantage
| We always use poly bag for the goods which ship by air, so that customer can save freight free |
| Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping |
| There also have some customer request us to use the carton to packing their goods |
| We can according to customer's requirement |
